Note ! ! !

The Autel MaxiDAS DS808S has been discontinued and unavailable, We recommend you it's latest upgraded version - Autel MaxiDAS DS808S-BT Kit.

Autel MaxiDAS DS808S-BT Kit 👉 https://www.diagmart.com/products/autel-maxidas-ds808s-bt-kit

[discontinued]

Autel MaxiDAS DS808S 2024 Scanner

The Autel MaxiDAS DS808S is an upgraded version of the DS808 / MP808, offering enhanced hardware compared to the older models. It boasts a faster Rockchip RK3566 Processor, 4GB of RAM, 64GB of ROM, and runs on Android 11. Additionally, it supports both 2.4GHz and 5GHz WiFi. One notable improvement is that the DS808S now supports ECU Coding for BMW, Porsche, VW, and other vehicles. This makes it a valuable tool for workshops and professional mechanics. Despite its advanced features, the DS808S remains cost-effective, providing the same diagnostic functions and services as the MS906 model. Overall, the Autel MaxiDAS DS808S is a top choice for workshops or professional mechanics, offering superior performance and functionality.

Top Reasons to Choose Autel MaxiDAS DS808S

• Advanced ECU Coding: The MaxiDAS DS808S offers advanced ECU coding capabilities, similar to the MS906 Pro. It can match, code, and learn replaced ECUs, as well as perform adaptive data coding, customization settings, and activate high-end features.
• Unlock Hidden Features: This function allows you to customize certain vehicle configurations, such as one-click start/stop, one-button folding mirrors, seatbelt warning sounds, and 3-time flasher settings.
• Offline Coding/Adaptation: It can read codes from the original module and write them to a new module for vehicles like Jaguar, Vauxhall, Opel, and more.
• VAG Guided Functions: Customers can follow step-by-step instructions to simplify operating procedures for VAG vehicles.
• Ultra-level Hardware Configuration: The DS808S is 5 times faster than the MS906 and MS906BT models. It features Android 11.0 and a Rockchip RK3566 processor, among other advanced hardware components.
• Bi-Directional Control / Active Test: Users have full control over various car components and can perform active tests, including EVAP test, cooling fan, injector test, cycling test, ABS motor pump test, A/C clutch switch on/off, and more.
• 30+ Hot Services: The DS808S offers over 30 hot services to meet daily maintenance demands. These include ABS reset, SCR reset, SAS reset, throttle adjustment, cylinder deactivation, transmission adaptation, and more.
• OE-Level Full System: With this tool, you can read DTCs (Diagnostic Trouble Codes) and data streams for all available vehicle systems. It also enables you to perform active tests and retrieve ECU information on a wide range of vehicles.
• 10,000+ Wide Coverage: The DS808S provides coverage for over 10,000 models from 1996 to 2024, with support for more than 150 car manufacturers. The database is continually expanding to include the latest makes and models.
• One Year Free Update: The DS808S comes with a one-year free software update. Additionally, it is compatible with the MV108S camera for enhanced diagnostic capabilities.

Autel MaxiDAS DS808S with ECU Coding Function

The Autel DS808S performs the same ECU coding function as the MS906BT / MS906 Pro, but at a more affordable price. With this ECU coding function, you can reprogram the adaptive data for BMW, Porsche, VW, and other brands after repairs or replacements.

What can this function do for you?

• Match, code, and learn replaced ECUs
• Activate high-end features
• Perform online ECU coding for BMW, Porsche, VW, etc.
• Customize settings
• Code adaptive data
• Improve your vehicle's performance

Unlock hidden features

• You can use the DS808S to access hidden functions and customize the vehicle's configuration. This includes one-click start/stop, seatbelt warning sounds, one-button folding mirrors, and more.

VAG Guided Functions

• The DS808S supports VAG guided functions for VW, Audi, Skoda, Seat, Man LD, and other brands. This feature simplifies complex functions and improves efficiency, making your work easier.

Note: The DS808S is not universally compatible with all vehicles. Please contact us with your VIN for confirmation.

Autel MaxiDAS DS808S with OE-Level All Systems Diagnostic

The Autel MaxiDAS DS808S Scan Tool has the ability to diagnose all systems, which is comparable to original factory. This function is so convenient that you can quickly scan all systems and find the defective parts, thus improving your work efficiency and saving your precious time.

It mainly works well to read & clear codes, ECU information reading, read live data, view freeze frame, graphic data, and performs special functions for all available systems.

The DS808S is your best choice for all system diagnostic, which same as MS906, including Anti-lock Brake System(ABS), Electronic Parking Brake(EPB), Battery Mange System(BMS), Supplemental Restraint System(SRS), Steering Angle System(SAS), Air Conditioning System, etc.

30+ Popular Maintenance Service Functions

If you have to reset your vehicle, then DS808S probably a good choice for you. The services including but not limited Oil Reset, EPB Reset, TPMS Reset, ABS Bleed, BMS Reset, Throttle Matching, SAS Calibration, Suspension Calibration, Airbag Reset, ABS & SRS, WIN DR Roof, Seats Calibration, Language Change, Headlamp Matching, Cylinder, Clutch, A/F Setting, etc.

• Oil Reset: Reset the oil change calculator in the engine and automatic transmission
• SAS Reset: Adaptation of the sensor to the angular position of the steering wheel
• EPB Reset: Replacement of brake pads on vehicles with an electric parking brake
• DPF Reset: Regeneration of diesel particulate filter
• BMS Reset: Battery registration and reset
• ABS Bleed: ABS Brake Bleeding
• Injector, Throttle, Seats, Odometer, Airbag reset, Headlamp, Cylinder, etc.

Note: The compatible services may differ from different vehicles.

Autel MaxiDAS DS808S with Bi-Directional Control/Active Test

The Autel DS808S is favored by more and more repair shops to quickly and precisely locate the problem, which save you the trouble to disassemble the car into parts to detect the problem, saving you more time to maximize your working efficiency. This function allows you to send commands to control various module actuators and quickly know any components needed to be replaced or not.

The function of full bi-directional control can be used in windscreen, mirror fold/unfold, windows & door, sear control, and more.

Autel MaxiDAS DS808S Extension Functions

Endoscope Function(with MV105/MV108)

• Autel DS808S can work with the Autel MV105 or MV108 digital inspection camera to check hard-to-see area, such as vent pipe, engines, air conditioners, sofa corners, etc.

Cloud Management

• This function allows you to upload date or diagnostic reports to Autel Cloud, and it makes it easier to share reports directly to clients via email/QR code.

Auto VIN Scan

• With the latest VIN-based Auto VIN Scan function, it is convenient for technicians to quickly identify vehicles, automatically scan all available systems, and efficiently run diagnostics.

10000+ Vehicle Coverage

Autel DS808S has extensive vehicle coverage for more than 80+ US, Asian, and European vehicle makes and models.

Autel MaxiDAS DS808S Specifications

Display	7-inch LCD capacitive touchscreen with 1024x600 resolution
Connectivity	Wi-Fi(802.11a/b/g/n/ac)
	USB 2.0,Mini USB 2.0
	SD Card (Support up to 64GB)
Sensors	Light sensor for brightness auto adjust
Audio Input/Output	Input: N/A
	Output: Beep
Power and Battery	3.7 V/5000mAh lithium-polymer battery
	Charges via 5 VDC power supply
Input Voltage	5 V/1.5 A
Operating Temp	· 0 to 50°C (32 to 122°F)
Storage Temp	· -10 to 60°C (14 to 140°F)
Dimensions(WXHX D)	270.8 mm (10.0”) x 176.0 mm(6.9”) x 36.0 mm (1.4”)
Weight	885 g (2.31 lb.)
Protocols	ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISo11898(Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN) SAE J2610, GM UART UART Echo   Byte Protocol, Honda Diag-H Protocol,TP2.0,TP1.6

Autel MaxiDAS DS808S Package List

• 1x DS808S Main Unit
• 1x Main Cable
• 1x Mini USB Cable
• 1x Power Adapter
• 1x Quick Reference Guide
• 1x Packing List
• 1x Soft Cloth

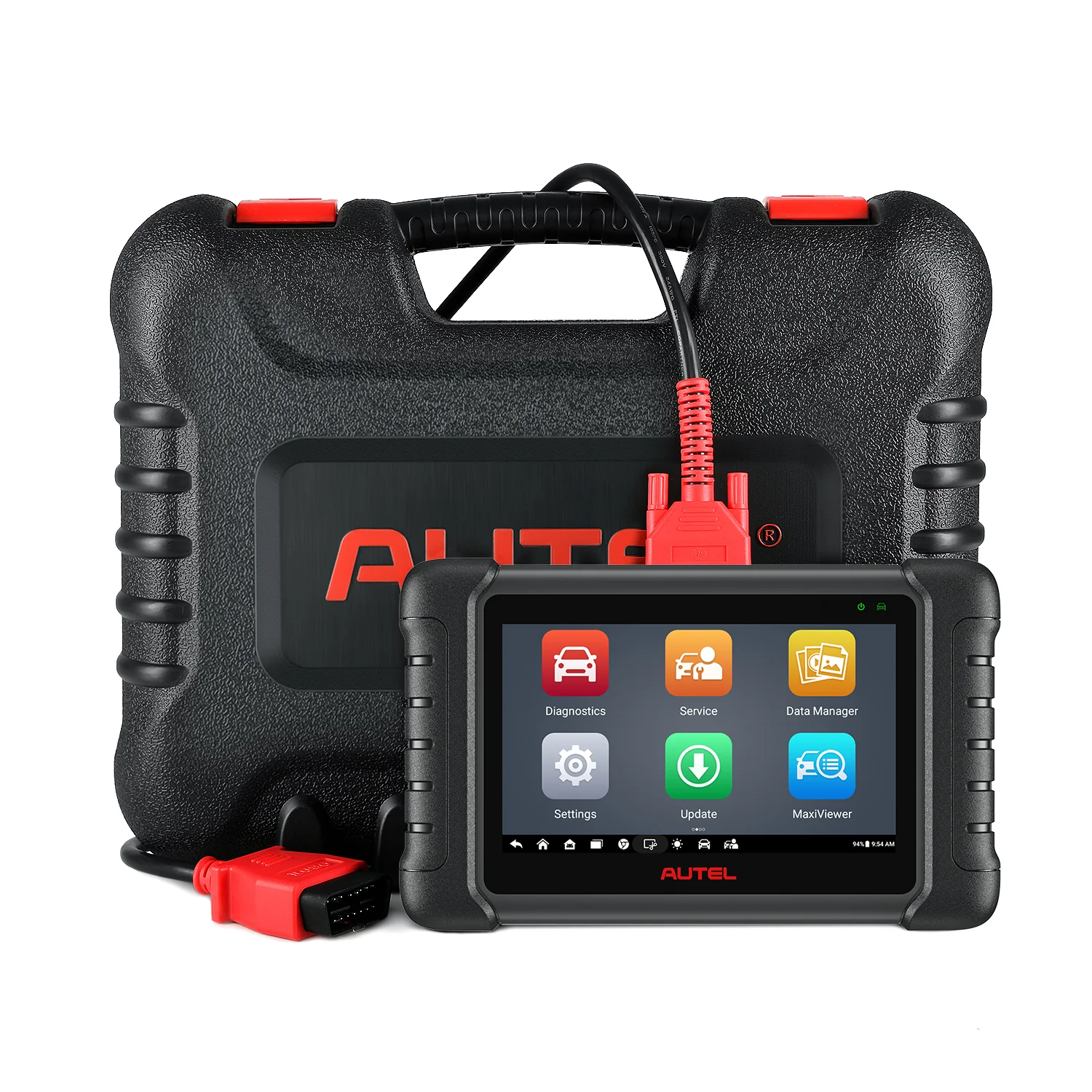

• 1x Carrying Case(380x300x120mm)

Autel DS808S Comparison Chart

	MaxiDAS DS808S	MaxiDAS DS808S-BT	MaxiDAS DS808S-TS	MaxiDAS DS808
Read Codes	√	√	√	√
Erase Codes	√	√	√	√
Live Data	√	√	√	√
ECU Information	√	√	√	√
Active Test	√	√	√	√
Service Functions	√	√	√	√
Complete OBD Diagnostics	√	√	√	√
Oil Service Reset	√	√	√	√
Parking Brake Pad Relearn After Replacement	√	√	√	√
Steering Angle Sensor Relearn	√	√	√	√
Battery Registration and Reset	√	√	√	√
Diesel Particulate Filter Regeneration	√	√	√	√
Tire Pressure Monitoring System	Basic	Basic	Complete	Basic
Immobilizer Function	Basic	Basic	Basic	Basic
Advanced TPMS Diagnostics for Complete TPMS Health Check	--	--	√	--
Activate 98% of All Known TPMS Sensors	--	--	√	--
Program AUTEL MX-Sensors	--	--	√	--
Comprehensive OBD relearn coverage	--	--	√	--
On-screen Relearn Procedure	--	--	√	--
Battery Analysis	--	√	√	--
Videoscope	√	√	√	√
Processor	Quad-core 1.8GHz	Quad-core 1.8GHz	Quad-core 1.8GHz	Quad-core 1.8GHz
Operating System	Android 11	Android 11	Android 11	Android 4.4.4
Memory	4G + 64G	4G + 64G	4G + 64G	1G + 64G
Display	7" LCD	7" LCD	7" LCD	7" LCD
Battery	5000 mAh	5000 mAh	5000 mAh	5000 mAh
Internet Updatable	WiFi	WiFi	WiFi	WiFi
Multilingual Support	√	√	√	√
Historical Test Records	√	√	√	√
Save and Playback Data	√	√	√	√
Print Data via Windows PC	√	√	√	√
Vehicle communication method	Wired	Wireless (bluetooth)	Wireless (bluetooth)	Wired

MaxiDAS DS808S Product guides and documents

DS808S User Manual (PDF)
DS808S Quick Guide (PDF)
