Autel Maxisys MS906BT Diagnostic Scanner, 2023 Newest Ver. of MS906 with Advanced ECU Coding & Bi-Directional Control, 31 Service Functions
Autel MaxiSys MS906BT
Autel MaxiSys MS906BT is an advanced automotive diagnostic scanner, with its reasonable price but excellent capability, making it popular with home mechanics, auto DIYers, and repair shops. Unlike the old version Autel MS906, 2022 newest wireless version MS906BT takes a great leap in hardware and software, coming with doubled battery capacity(10000 mAh) and German wireless technology, integrating advanced ECU coding (same as MS908S), Bi-directional control, 31+ services, VW/Audi Guided functions, refresh hidden features, All system diagnosis (same as MS908 MK908P), covering 10,000 + car models in the market.
- Advanced ECU Coding: change pre-programmed options already existent in the vehicle’s software.
- OE-level All System Diagnostic: scan all electrical vehicle systems and troubleshoot faults codes.
- Wireless Version: equipped with Bluetooth VCI, up to 75feet(23m) working range, performing wireless diagnostic with more stable and faster data transmission.
- 31+ Maintenance Services: integrate 31+ services, meeting 99% of maintenance needs, such as Oil/EPB/SAS/DPF/BMS/ABS Bleed/Injector, etc.
- Bi-directional Control/Active Test: perform real active test that can send commands to the vehicle’s ECU to drive the actuators to work.
- VAG Guided Function: provides OE-level guidance and allows you just follow the screen instructions step by step to complete some complex operations.
Autel MaxiSys MS906BT Key Features:
Advanced ECU Coding, Same as MS908
Commonly used in the following aspects:
Module Replacement: When you need to replace a new ECU module or a bad component, ECU coding can help you activate/match/code/relearn “these new guys” to the car computer and get them recognized by other in-vehicle modules, then they can work.
Vehicle Upgrade: Autel MS906BT can access to Autel server to get OEM update data to upgrade or replace the existing software or firmware in the ECUs to the latest version, fixing software-controlled drivability issues.
Customization: ECU coding can help you to change factory settings and refresh hidden features.
So you can disable some unneeded factory settings, such as disable auto start-stop, annoying chimes like door open/close chime, seat belt chime, low fuel chime, etc. Also you can activate the hidden features already programmed to the car computers to get high-end functions, such as auto start-stop system, US-style daytime light, auto door look at a particular speed,etc. Compatible with VW, Audi, Skoda, etc.
31+ Most Commonly Used Resets & Services
20+ Commonly Used Reset Functions for Fast Maintenance or Repairs:
Oil Reset, EPB, BMS, ABS Bleed, TPMS, Airbag Reset, DPF Regeneration, IMMO Service, Injector Coding, SAS Calibration, Suspension Calibration, Throttle Adaption, ABS/SRS, Gear Learning, Sunroof Initialization, Seats Calibration, Language Change, Headlight Matching, A/F Setting, WIN DR Roof, Odometer, CHG Tire Size, Cylinder, Turbocharging, Limit, Trans Adaption.
10 Advanced Functions for Different Vehicle Models:
Neutral Gear Position Learning, Torque Sensor Adjustment, Signal Check, Yaw Rate Sensor (YRS) Learn, Clutch Pedal Position Learn, Cylinder Power Balance, Component Matching, Stop/Start Reset, Transport Mode, Auto-Door Lock, etc.
Oil Reset: Reset service mileage & service intervals after engine oil is changed.
-EPB Reset: To replace the worn brake pads/discs, you need to use MS906BTto enter Service mode, and then exit the mode after the replacement.
-BMS Management: Register the battery after replacement.
-DPF Regeneration: Perform DPF Regeneration to clear the blockage through continuous burning of the particulate matter captured in the DPF filter and turn off DPF warning light.
-SAS Calibration: When you disassemble the steering column or the steering angle sensor has a problem/replacement, it is necessary to do a reset/calibration to ensure the accurate steering of your vehicle.
-ABS bleeding: Help you activate and cycle the ABS pump to bleed the air from the ABS module, thus avoiding brake insensitivity and brake failure.
-Injector Coding: Write the new code to the ECU after the replacement of the injector;
Dealership-Level All System Diagnostic
Wireless diagnostic tool MS906BT, with the same diagnostic capability as MS908/MK908P, can scan all available car systems, such as PCM, ECM, TCM, CTM, EPS, PDM, BCM, TPM, SCCM, RADIO and etc, to read codes, clear codes, view live data of multiple sensors in text or graph, retrieve vehicle information, perform active tests, guided function, coding, adaptation, etc. With just a few simple clicks, you can quickly locate the issues to win more time and business.
Read codes： retrieve detailed information of DTC records to locate problems
Clear codes: erase DTC records and other data after reading codes and making appropriate repairs
Live data: view live data and parameters of multiple sensors in text, graph & analog
ECU Info: view the specific information for the tested control unit, including unit type, version numbers and other specifications.
Auto VIN: automatically identity your vehicle’s make, model, and year information with one click
Autel MaxiSys MS906BT High-end Features
Bidirectional Control/Active Test
MS906BT scan tool can perform real active tests that can send commands to the vehicle’s ECU to drive the actuators to work, like ABS motor, window, door, solenoids, valves, wipers, headlamp, etc, helping quickly find the issue and in many events test the sensors or parts to verify the issues.
-Do cylinder drop test (power balance test) to determine which cylinder is on fire
-Turn on /off the fuel pump to determine if there is a broken fuel pump
-Turn on /off windshield wipers, windows,door
-Cycle the a/c clutch on and off
VAG Guided Function
Designed for VAG cars!! Autel MaxiSys MS906BT with guided functions provides OE-level guidance and allows you just follow the screen instructions step by step to complete some complex operation. For example, if you want to replace brake pads, MS906BT scanner will tell you when to enter Service mode, when to replace the brake pads, with detailed steps and tips. Best tool for beginners and DIY mechanics. Compatible with VW, Audi, Skoda, Seat, Bently, etc.
Refresh Hidden Features
Automotive diagnostic scan tool MS906BT can help you activate the hidden features already programmed to car computer to get high-end functions. Such as install auto start-stop system, customize injector light, change US-style daytime light, adjust auto door look at particular speed. Compatible with VW, Audi, Skoda, etc.
Auto VIN & Auto Scan
You don’t need to worry about the operation, open and use it, as naturally as if you were using a smartphone. Two friendly shortcut keys AutoVIN and AutoScan make everything easier: AutoVIN can quickly identify your car’s make, model, and year information; AutoScan can automatically scan all car systems and find out fault codes.
2022 Newly-added Features
Pre/Post Scan Report: Generate and print out the "Pre-SCAN Report" before repairs, formulate an effective repair plan, execute "Auto SCAN Repaired Vehicle" after repairs, ensure that no new faults are generated during repairs, and certify all DTCs on the pre-scan report have been repaired.
Cloud Report Management: you can upload diagnostic reports to Autel Cloud and share reports with customers through QR Code/ email/ text message easily, customers can view the reports anytime.
Autel Online Assistance
Data Logging: If you are confused about diagnostic results, you can upload your diagnostic report to the Autel server on Data Logging, so that Autel engineers can directly receive and deal with your problem, and feedback the problem solution.
Remote Desk: If you have any operational problems, you can use Remote Desk to allow Autel’s support center, colleagues, or friends, to control your MS906BT tablet on their PC and perform remote diagnostic, with step-by-step operation to show you, easy to solve problems.
Autel MaxiSys MS906BT Add-on Functions：
Maxisys MS906BT is a diagnostic scanner with various interfaces that can work with more useful Add-on like Inspection Camera, HDMI Projector, Phone, PC, USB Memory Stock, Headset, Oscilloscope, Extend SD Card, etc.
Work with inspection camera (MV105/MV108): you can use it to examine difficult-to-reach areas normally hidden from sight, such as engine cylinders, and small part inspections like spark plug holes, and record digital still images and videos.
Work with Oscilloscope(MP408): you can use it to measure and test virtually all the electrical and electronic components and circuits in any modern vehicle to get an insight into the inner workings of a vehicle’s electronic circuits and get more specific diagnostic details. (purchase separately)
Digital and Graphical Display of Parameters
Using MaxiSys you can display the parameters of the system conveniently. Some parameters are more likely to be monitored in analog form, for example, pressure. Some parameters are more conveniently viewed in graphical form, by observing their change in time (potentiometers, oxygen sensors). Some parameters must be displayed in the graph to observe changes relative to each other (for example, air mass flow and engine speed). Only in MaxiSys, all these ways of displaying are available for all parameters and all components, regardless of the makes and models of the car.
Special Tests
The actuators are not always visually visible or too complex to assess their performance with organoleptic (eyes, ears) methods through normal activation. That's why the test components are implemented in MaxiSys scanners. Test components will allow you to include special test modes in the computer, in which the electronic system itself creates conditions for verification and evaluates its results with further recommendations to the expert
Autel MaxiSys MS906BT Vehicle Coverage
Automotive diagnostic scanner MS906BT has the most extensive complete system coverage for more than 80 US, Asian and European makes and models, including BMW, Chrysler, Dodge, JEEP, Benz, Ford, VW, Fiat, Volvo, Ferrari, Toyota, Mazda, Land Rover, Porsche, etc 80+ Vehicle Makes.
Comparison of MS906BT, MK906BT, and MS906
| Comparison | MS906BT | MK906BT | MS906 |
| Price | $949 | $1195 | $1049 |
| Software | |||
| All Systems DTC Scan | √ | √ | √ |
| Bi-Directional Control | √ | √ | √ |
| Service Function | √ | √ | √ |
| Data Manager | √ | √ | √ |
| Auto VIN Technology | √ | √ | √ |
| ECU Coding | √ | √ | / |
| ECU Programming | / | / | / |
| Multilanguage | / | √ | / |
| Wireless Connection | √ | √ | / |
| Hardware | |||
| Display Size | 8" | 8" | 8" |
| Wireless VCI | MaxiVCI V100 | MaxiVCI V100 | / |
| Battery Life | 10000 mAh 3.7 V | 10000 mAh 3.7 V | 5000 mAh 3.7 V |
| Memory Storage | 64GB | 64GB | 32GB |
Autel MS906BT Specifications:
| Operating System | Android™ 4.4.2, KitKat |
| Processor | Samsung Exynos T5260 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15) |
| Memory | 2 GB RAM & 64 GB ROM |
| Display | 8.0" LED capacitive touch screen with 1024x768P resolution |
| Connectivity | Wi-Fi (802.11 b/g/n) Wireless BT V2.1+EDR, Class1, HDMI 1.4a SD Card (support up to 32 GB) |
| Camera (rear) | Built-in 8-Megapixel Rear Camera Autofocus & Flashlight |
| Sensors | Gravity Accelerometer Ambient Light Sensor (ALS) |
| Audio Input/Output | Microphone Single Speaker 3-Band 3.5 mm stereo/standard headset jack |
| Power and Battery | 10,000 mAh 3.7 V lithium-polymer battery (up to 14 hours of continuous operation) Charging via 12 V AC/DC power supply |
| Input Voltage | 12 V (9-35 V) |
| Power Consumption | 5 W |
| Operating Temperature | -10 to 55°C (14 to 131°F) |
| Storage Temperature | -20 to 70°C (-4 to 158°F) |
| Dimension | (W x H x D) 270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”) |
| Weight | NW: 1.05 kg (2.3lb.) |
| Downloads | Autel MS906BT User Manual |

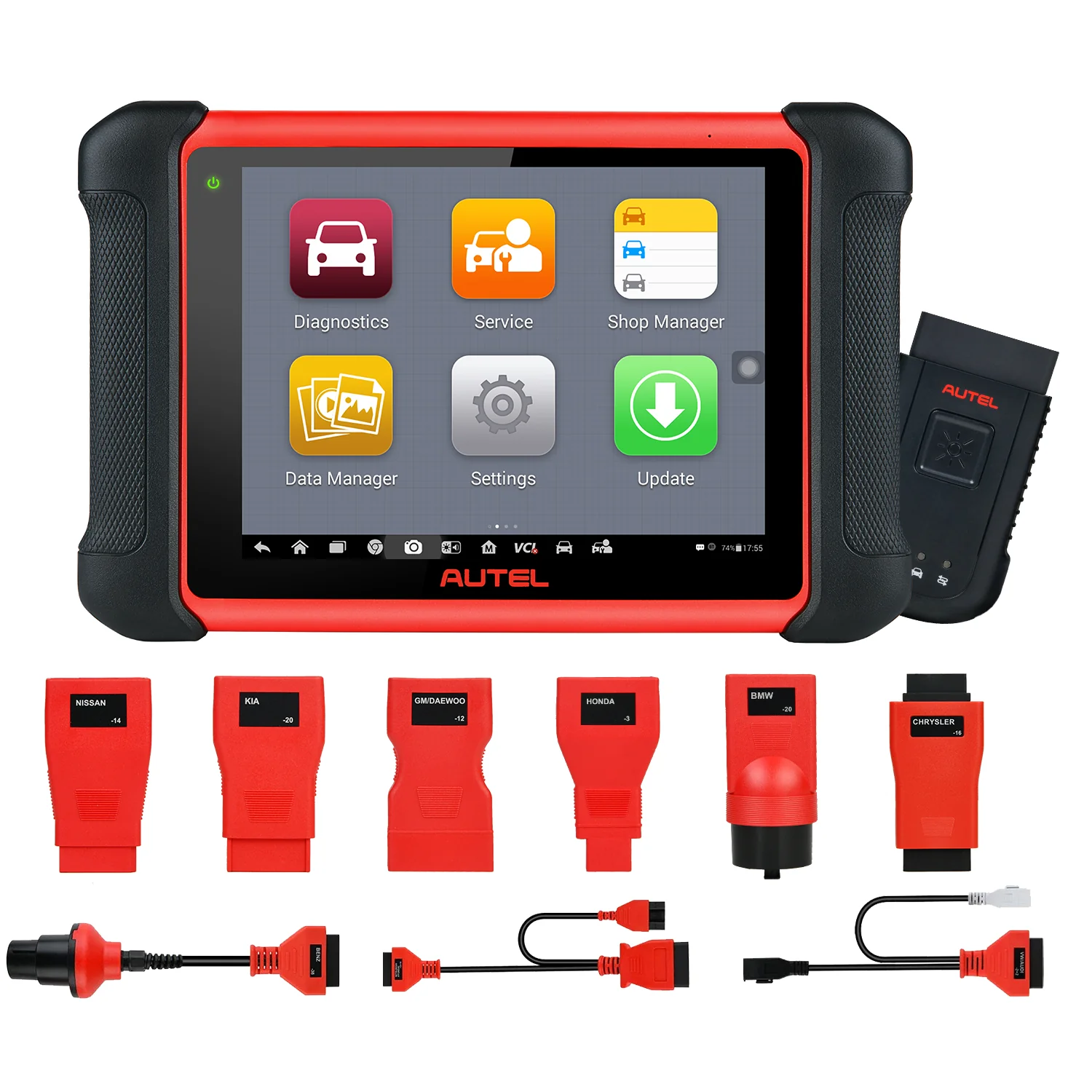

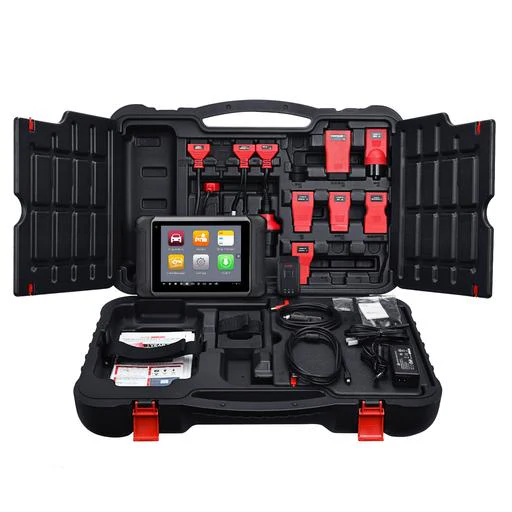

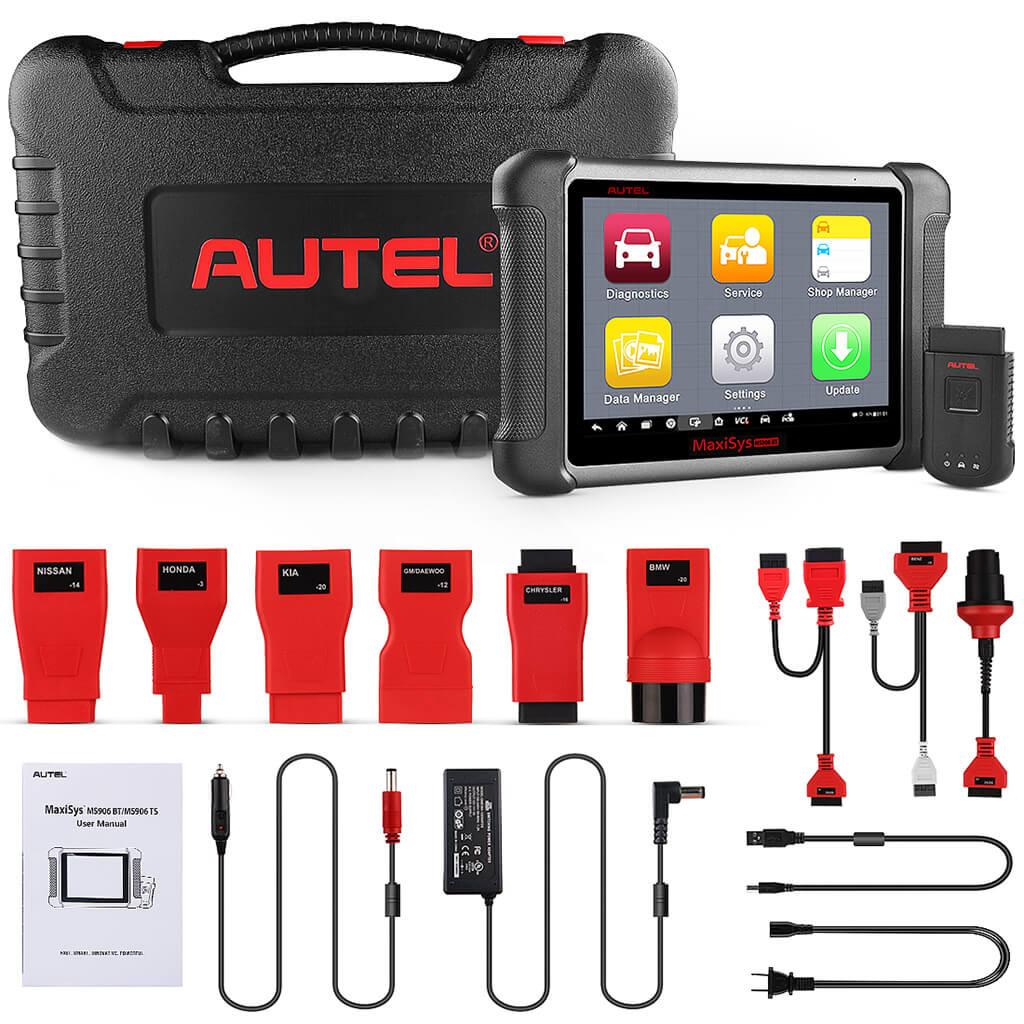

Autel MS906BT Package List:
- Maxisys MS906BT main unit
- AC/DC Adapter (12V)
- Adapter for Chrysler-16 (America Only)
- Adapter for GM/Daewoo-12
- Adapter for Benz-38
- Adapter for Mitsubishi/Hyundai-12+16
- Adapter for Honda-3
- Adapter for BMW-20
- Adapter for Kia-20
- Adapter for Nissan-14
- Adapter for VW/AUDI-2+2
- Cigarette Lighter
- MaxiVCI V100
- Lighter Fuse
- Soft Cloth
- Mini USB Cable
- User Manual
- Packing List
- Carrying Case
- Quick Reference Guide
Product Display
MS9060BT Product guides and documents
MS906BT User Manual (PDF)Certificate
