Autel PowerScan PS100 - 2026 Newest Circuit Tester

The PowerScan PS100 is the most revolutionary circuit tester to date. Featuring AVOmeter, test light, built-in flashlight, short circuit indicator, relay/component tester, continuity tester and bad ground indicator, the PowerScan is truly the ultimate in power and affordability, allowing users to check circuitry in one single step. An absolute must for every technician looking for a fast and accurate solution to electrical system diagnostics.

Autel PS100 Features

• Performs every type of service including power injection, measurement, ground testing, polarity checks, continuity testing and components activation
• Easy to read AVOmeter allows you to read voltage, current and resistance at the fingertip
• With a flip of the power switch, you have an instant hot/ground lead for powering up electrical components like cooling fans, relays, etc.
• Simultaneously uses the hot lead and the ground lead to activate components right in your hand
• Instantly identifies positive, negative and open circuits
• Tests for bad ground contacts instantly, allowing you to follow and locate shorts fast without wasting fuses
• Instantly checks continuity of switches, relays and diodes
• Circuit breaker protected
• Built-in Flashlight enables you to work in the dark
• Audio tone indicator allows for no-look menu scrolling once users are familiar with menu tone assignment
• 20ft (extendable) cable provides excellent accessibility to test along the vehicle
• Extremely easy to use and highly reliable

PS100 with 4 Scan Work Modes

Why does Autel Powerscan PS100 stands out?

20ft (extendable) cable provides excellent accessibility to test along the vehicle

PS100 with Wide Coverage

One circuit tester can application:

• Voltage & Polarity Testing
• Continuity Testing
• Signal Circuit Testing
• Activating Components In Your Hand
• Testing Trailer Lights And Connections
• Activating Components In The Vehicle
• Activating Components W/ground
• Checking For Bad Ground Contacts
• Following & Locating Short Circuits
• Red/green Polarity Led
• More Function Refer to User Manual

PowerScan PS100 Specification:

Display	TFT color display (160 x 128 dpi)
Operating Temperature	0 to 60°C (32 to 140°F)
External Power	12.0 or 24.0 V power provided via vehicle battery
Length\Width\Height	126mm(4.96”)\46.5mm(1.83”)\35mm(1.38”)
NW	0.105kg (0.23lb),GW: 0.726 kg(1.6lb)

Autel PS100 Packing List:

• 1x Autel PS100 power probe
• 1x Rugged blow molded case
• 1x 20ft. extension cable
• 1x Probe tip
• 1x Battery hookup clips
• 1x Cigarette lighter adapter
• 1x User's Manual

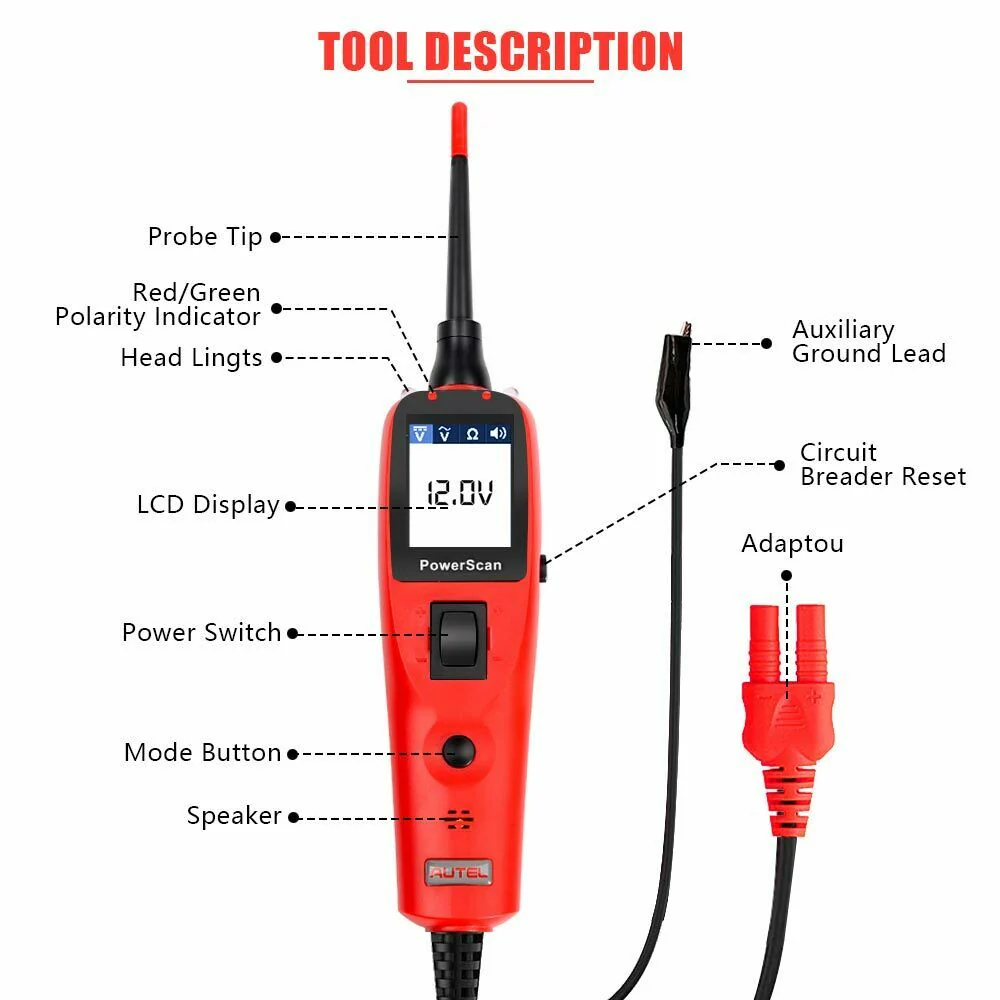

Autel PS100 Function Button

PS100 Product guides and documents

PS100 User Manual (PDF)
