Autel G-BOX3 Key Programming Adapter For Mercedes And BMW Vehicles, Writing Boot Mode Bench Method, Works with MaxiIM IM508(S) + XP400 Pro, IM608 PRO II, IM608S II, Upgraded of Gbox2
Autel MaxiIM G-BOX3 - Faster, More Secure
The Autel MaxiIM G-BOX3 is an adapter compatible with Autel's MaxiIM IM608/IM608 Pro/IM608S II and MaxiIM IM508/IM508S tablets (with the purchase of XP400 Pro programmer) that aids in the programming of keys to Mercedes DAS3 CAN EIS/EXS vehicles in an ALL Keys Lost situation. The G-Box3 also supports DME/DDE ISN Reading and Writing in Boot Mode on applicable BMW vehicles. Bench Method is also supported. All Keys Lost password calculations are approximately up to 8x faster.
What's New in Autel G-BOX3?
- Engine ECU reading/writing for BOSCH MD1/MG1(VAG,BMW,PSA,OPEL,etc)
- Mercedes-Benz All Keys Lost, Faster Password Calculation
- Mercedes-Benz All Keys Lost, eliminates repeated Insertions within the process
- Mercedes-Benz All Keys Lost, Can Be Programmed on the Vehicle Without Removing the Electronic Ignition Switch (EIS
- BMW DME/DDE ISN Reading and Writing in Boot Mode or Bench Method
- Contains All Connections Including Cables, Fuse Connector, and CAN Line Connectors
- Supports on-vehicle and on-bench Fast Mode in an All Keys Lost scenario for Mercedes-Benz vehicles using the DAS3 EIS/EZS
- All Keys Lost password calculations are up to 8x faster
Autel G-BOX3 Main Features
- Faster password calculation for Benz All Key Lost
- 8X times faster password calculation for W172, W204, W207
- 4X times faster password calculation for W209, W211
- No more repeated insertions and removals of IR simulator for 10 types of EIS
- Passport reading for 9 type EIS when all keys lost on vehicle
- BMW DME/DDE ISN reading for 20 types (EDC17, MEVD17, MSV90, MSD87, etc)
- VAG ECM IMMO data reading & data synchronization for 18 types (MQB EDC17, MED17, etc)
- Engine ECU reading/writing for BOSCH MD1/MG1(VAG,BMW,PSA,OPEL,etc)
- XP400 Pro may be required for certain functions

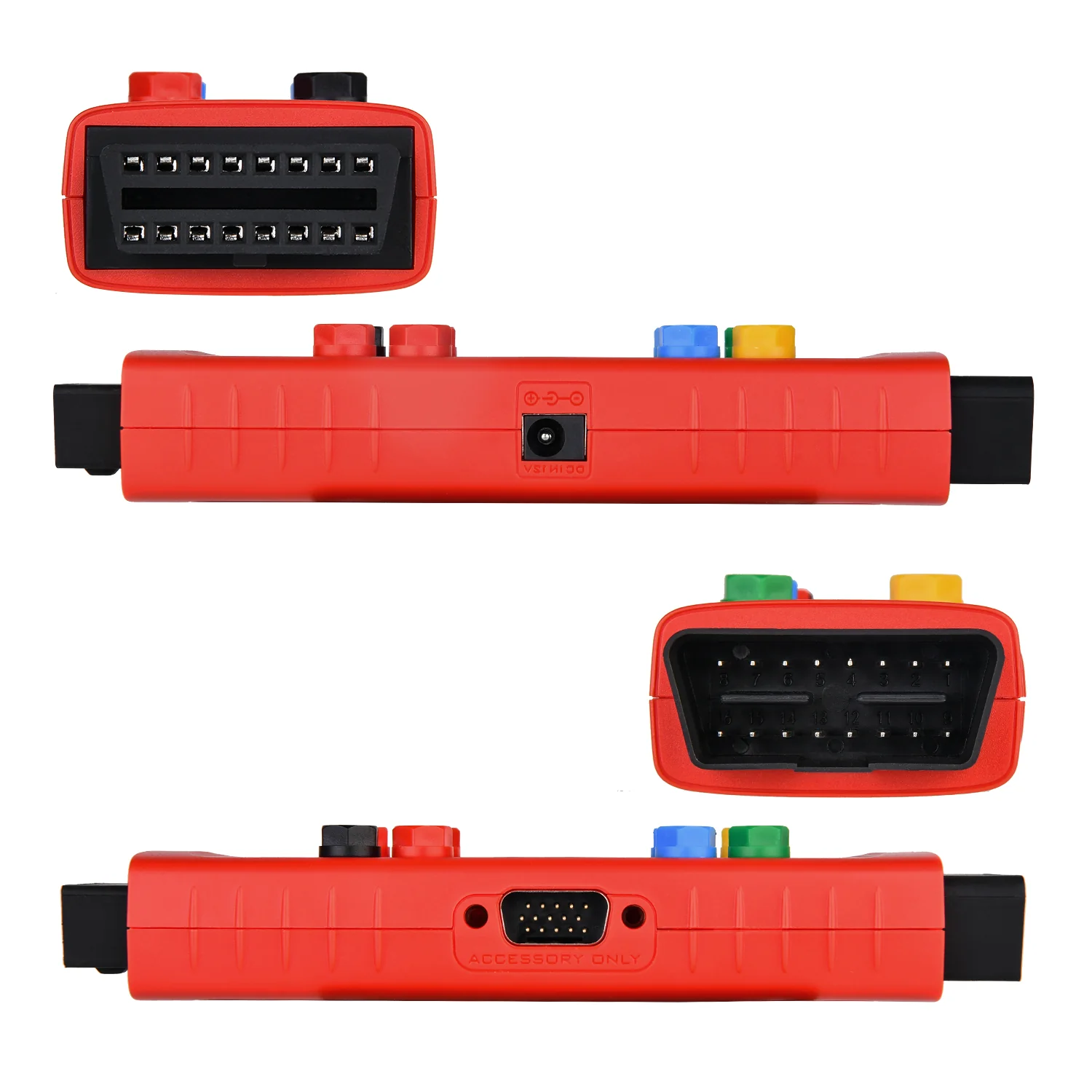

Autel G-BOX3 Connection Ports
G-BOX3 Working with Autel MaxiIM Tools
- XP200 / XP400 Pro + IM508 / IM508S (Note: When working with XP200, For some IMMO Functions may need XP400 Pro)
- XP400 Pro + IM608 (Pro) / IM608S II/ IM608 II
OBDII Operation When All Key of Benz Vehicle Are Lost
- Connect the G-BOX3 to vehicle's OBDII
- Remove the fuse of vehicles EIS, Connect the relay ports to the fuse using the supplied fuse cable.
- When the vehicle has an ELV, connect the K7 port and ELV plug using the supplied K-line cable.
- Connect the G-BOX3 to the Autel IM508S / IM508 / IM608S II / IM608, etc. IMMO tools

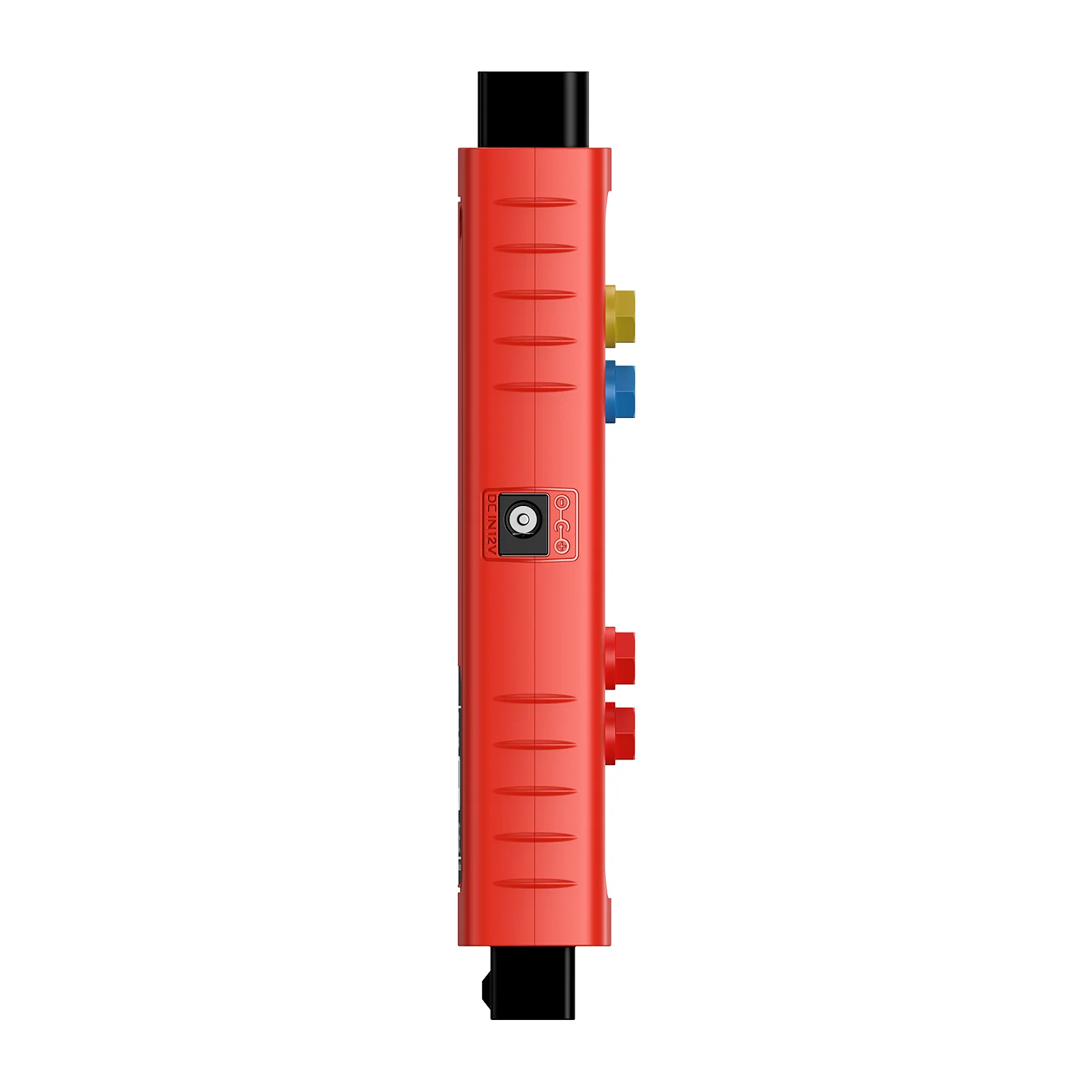

G-BOX3 Product Display

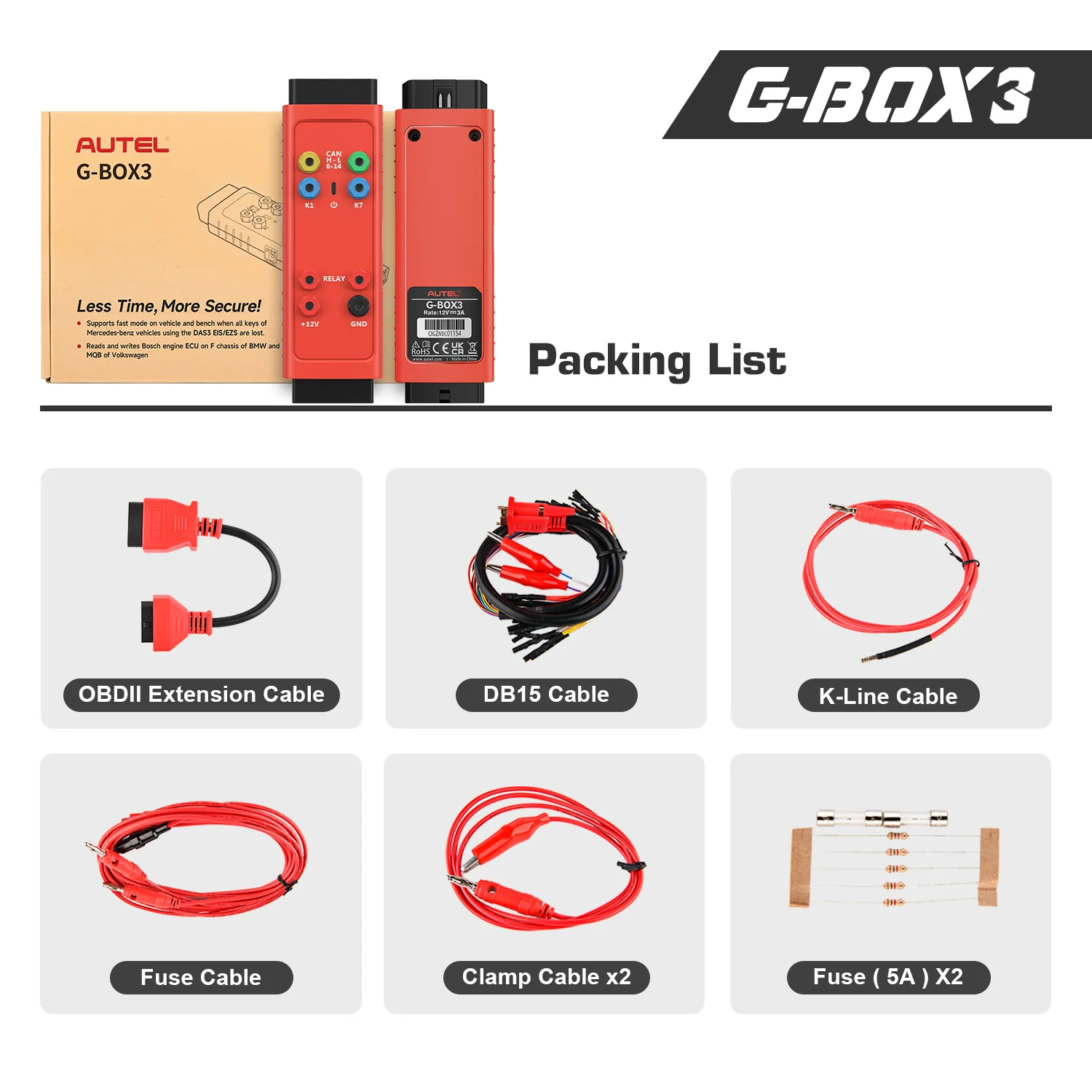

Autel G-BOX3 Packing List
- 1x G-BOX3
- 1x DB15 Cable
- 1x Fuse Cable
- 2x Fuse(5A)
- 2x Clamp Cable
- 1x OBDII Extension Cable
- 1x K-Line Cable
