Autel MaxiIM KM100 Key Fob Programming Tool

Autel's KM100 KM100X Key Generator Toolkit is the ultimate choice for car key programming. With its unique features like 60s universal key generation, chip read/clone/edit capabilities, full IMMO support, auto VIN/auto scan functionality, and more than 10 additional hot functions, it stands out as the most professional Immobilizer on the market. Paired with the MaxiVCI V200 wireless interface and 2PCS blank Autel IKEY, it ensures a seamless and efficient key learning process after key generation. Choose Autel's KM100X for a reliable and comprehensive car key programming solution.

Top Reasons To Choose MaxiIM KM100

• NO-IP Limitation - Global Version, NO IP Restriction, use it any country or region.
• Multi-Language - Supports English, German, Spanish, French, Polish, Italian, Russian, etc.
• Easy to Use - MaxiIM KM100 is a handheld touch screen device based on Android 9.0, which is easy to operate and has text or picture prompts at every key step.
• 700+ Vehicles Coverage - It can program Autel IKEY universal key as smart key replacement for more than 700 vehicles.
• Chip Simulation - Autel KM100 supports Chip Simulation for Emergency Use(for ID46 47 48 49 4A 8A), which can be used in an emergency when there is no chip around.
• Built-in APB112 - unlike Autel IM508 IM608 that need an extra APB112, 2026 MaxiIM KM100X directly covers all functions of Autel APB112 Smart Key Fob Emulator.
• Come with 2 PCS Free Autel Smart Keys - Autel KM100 (X) comes with 2pcs FREE universal smart blank keys in the package which support generating a wide range of universal keys with reliable quality to meet various needs of customers.
• Lifetime Update - Autel KM100 (X) enjoys lifetime free software updates, you can download all the updated software unlimited without extra penny.
• Note: If you purchase additional keys, the model of keys will be shipped randomly. If you need a specific model, please contact customer service to confirm the model you require before placing your order.

Autel MaxiIM KM100 Main Features

Complete Ability in IMMO & Key Programming

• Programs Autel' s IKEY universal key as smart key replacement for 700+ vehicles
• Extensive IMMO Key programming coverage (90% by OBD) including BMW, Volkswagen, Honda.
• 60 Seconds Key Generation (Autel Universal Ikey Only)
• Transponder Reading / Writing / Cloning, Transponder Editing Supporting 20 Categories
• Transponder Generation/ Simulation/ Conversion, Chip Read & Write, Cloning and Frequency Detection
• Key Renewal: Supporting 36 Vehicle Makes
• Dual-Band, High Frequency Transmitter 315MHz/434MHz or 868MHz/915MHz
• AutoVin vehicle identification to ensure accuracy
• Powerful Android-based tablet with 64 GB memory and long-lasting rechargeable battery
• Supporting Certification Requirements of Various Regions
• Supporting PLC V200
• IMMO Data Processing, Key Unlocking, Universal Key Information Detection, Button Adjustment, Ignition Coil Detection

Advanced Hardware Configuration

5.5-inch screen with 1280 x 720 resolution, Rockchip PX30 (4x ARM Cortex-A35 1.5GHz), Android 9.0, 2GB RAM/64GB Memory, 8MP Camera, Wi-Fi, Bluetooth 5.0, USB 2.0 type C, 4950mAh Battery

Autel KM100 Advanced IMMO Functions

• Key Learning via OBD for 90% Vehicles
• Generate Simulator Key (KM100 as Emergency Key)
• Smart Remote Learning / Key Learning
• IMMO Data Backup / Restore
• Key Generation / Program a Smart Key
• All Key Lost / Add a Key
• Read PIN / Password Calculation
• IMMO ECU Reset / Adaptation / Refresh / Coding

KM100 60s Key Generation (Autel Universal Only)

• Universally Applicable Autel IKEY: Autel MaxiIM KM100 (X) car key programmer can program the Autel IKEY as a smart key replacement for more than 700 US, EU, Asian vehicles.
• High-Efficient Key Generation: 60 seconds to generate new key, efficiency increased by 50%+.
• Simplified Operation: one-click get to IMMO learning directly after the key generated.

Note: Autel KM100 (X) key programming functions vary from car to car, it's better to send the 17 digit VIN of your car to [email protected] to check compatibility first before you order.

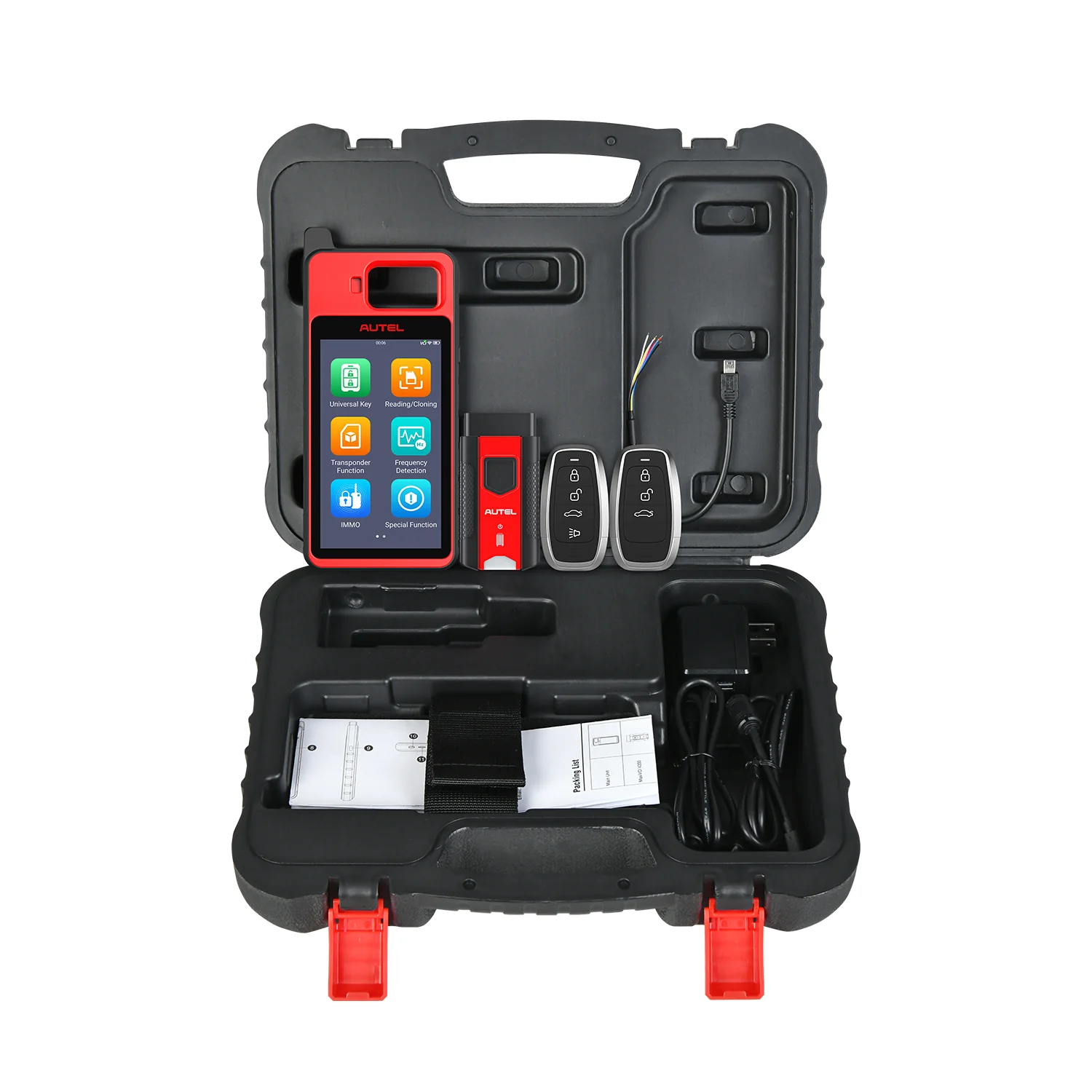

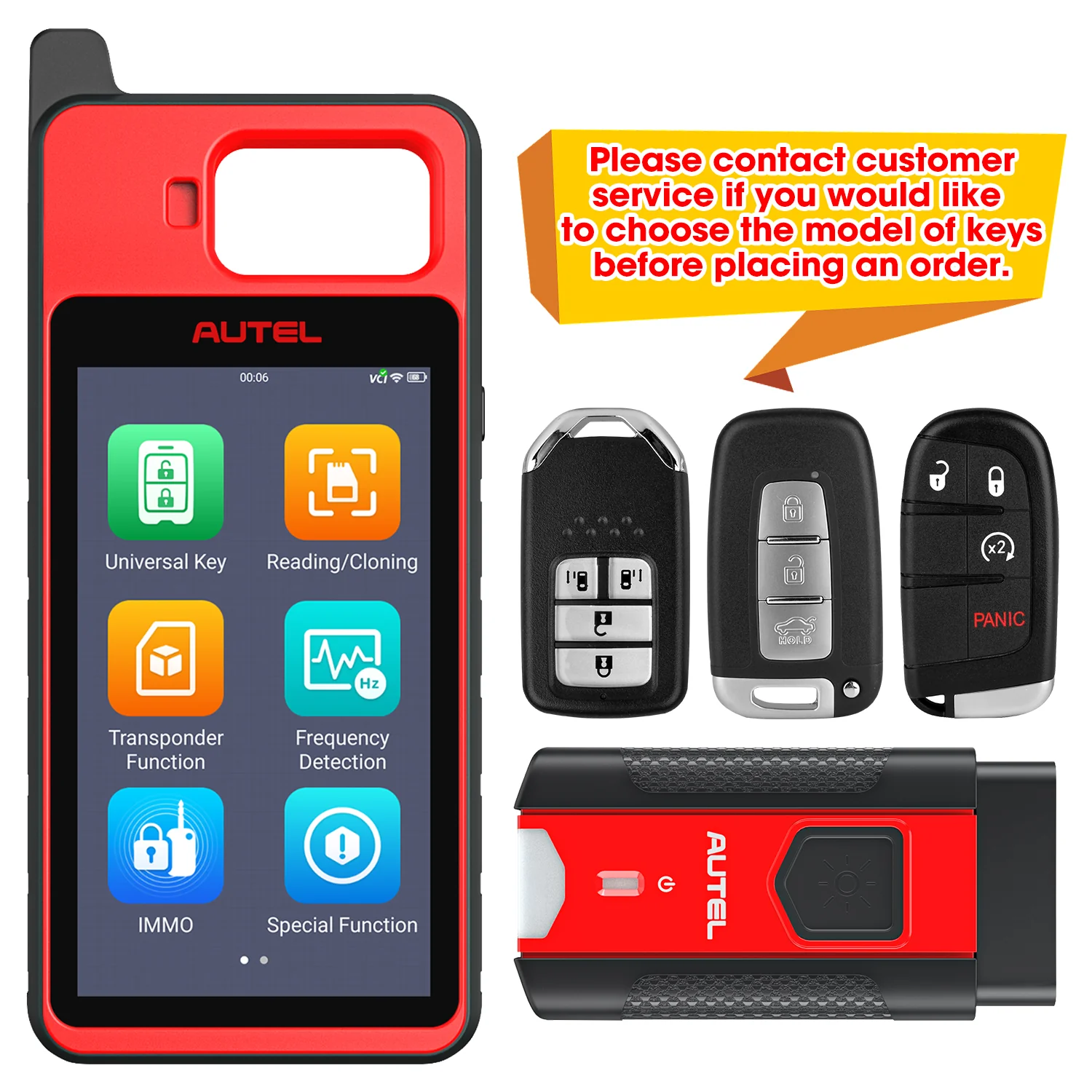

Autel MaxiIM KM100 with 2pcs Autel IKEY

Autel MaxiIM KM100 (X) Intelligent Key Programming Tool package includes 2 Autel universal blank keys for one-stop solution. Autel IKEY is produced strictly according to OE factory production criterion, and each model is tested repeatedly to ensure the high accuracy rate and full functionality, supporting Certification Requirements of Various Regions. Programmed Autel's IKEY universal ke-y as smart key replacement for more than 700 vehicles, and the Key can be reused.

• Support 8 series, 37 types appearances, and continue increasing
• Support compatible low frequency (315MHz/433MHz) and high frequency (868MHz/915MHz) types.
• Each model is strictly implemented according to the acceptance indicators of immo, RKE and PKE.

8 Series IMMO Types: ID46, ID47, ID49, ID4A, ID5C, Megamos 48, MQB.

(ID4D: ID4D only has remote control. If the key is out of power and the vehicle cannot be started in an emergency, an additional 4D transponder need be installed)

Autel MaxiIM KM100 Transponder Functions

• Transponder Reading: give you the access to some basic information pertaining to the key, including chip type, IMMO type, transponder ID, locking status, and code mode.
• Transponder Cloning: Autel KM100 (X) key programmer supports various transponder types for cloning and editing, You are able to use this function to detect the transponder and vehicle information in order to decrypt a code which shall be used to directly clone and generate a functional transponder for your vehicle. The whole process saves the trouble of using the old OBD approach.
• Transponder Editing: read and edit transponder information such as its configurations and EEPROM data. Choose an IMMO type (which can be accessed by the transponder reading function) and start editing according to your needs.
• Transponder Generation: generate a functional transponder accommodating different protocols or models using a blank transponder.
• Transponder Simulation: simulate the KM100 (X) to work as a transponder using a variety of IMMO protocols for emergency use (for ID46 47 48 49 4A 8A) when there is no chip around.

MaxiIM KM100 Hot Add Functions

• Frequency Detection: supports smart key frequency detection for a wide range of vehicle models, and display frequency data on the screen in both text and graph.
• IMMO Data Processing: add the IMMO related ECU information of a vehicle to calculate a password and other IMMO information, which will be written into the transponder of the vehicle, the processed transponder can be used to start the vehicle, in other words, you now have an extra key available.
• Key Unlocking (Key Renewal):use the KM100(X) to renew the firmware of the used smart key via cable connection to unlock a new car, working on 36 vehicle makes.
• Universal Key Information Detection: read the Autel universal key information, including the serial number, key ID, and IMMO version etc.
• Button Adjustment: assign the button functions of the Autel universal key.
• Ignition Coil Detection: place Autel KM100(X) low frequency detection collector to the ignition coil or the emergency start coil to detect the transponder type, Detection records will appear at the bottom of the screen.

MaxiIM KM100 Specifications

Dimensions (WxHxD)	200mm(7.9") x 89 mm (3.5") x 22mm (0.87")
Weight	352.7g (0.8 lb)
Screen	5.5-inch screen with 1280 x 720 resolution
Processor	Rockchip PX30 (4x ARM Cortex-A35 1.5GHz)
Operating System	Android 9.0
Memory	2 GB RAM / 64GB on-board memory
Camera	8 megapixels
Connection	Wi-Fi Bluetooth 5.0 USB 2.0 type C
Battery	4950mAh lithium-polymer battery
VCI	v200
Input	5V / 2A
Sensor	Ambient light sensor
Audio Input / Output	MIC: supported Speaker: supported
Operating Temp	-10 to 45°C (14 to 113°F)
Storage Temp	-20 to 60°C (-4 to 140°F)

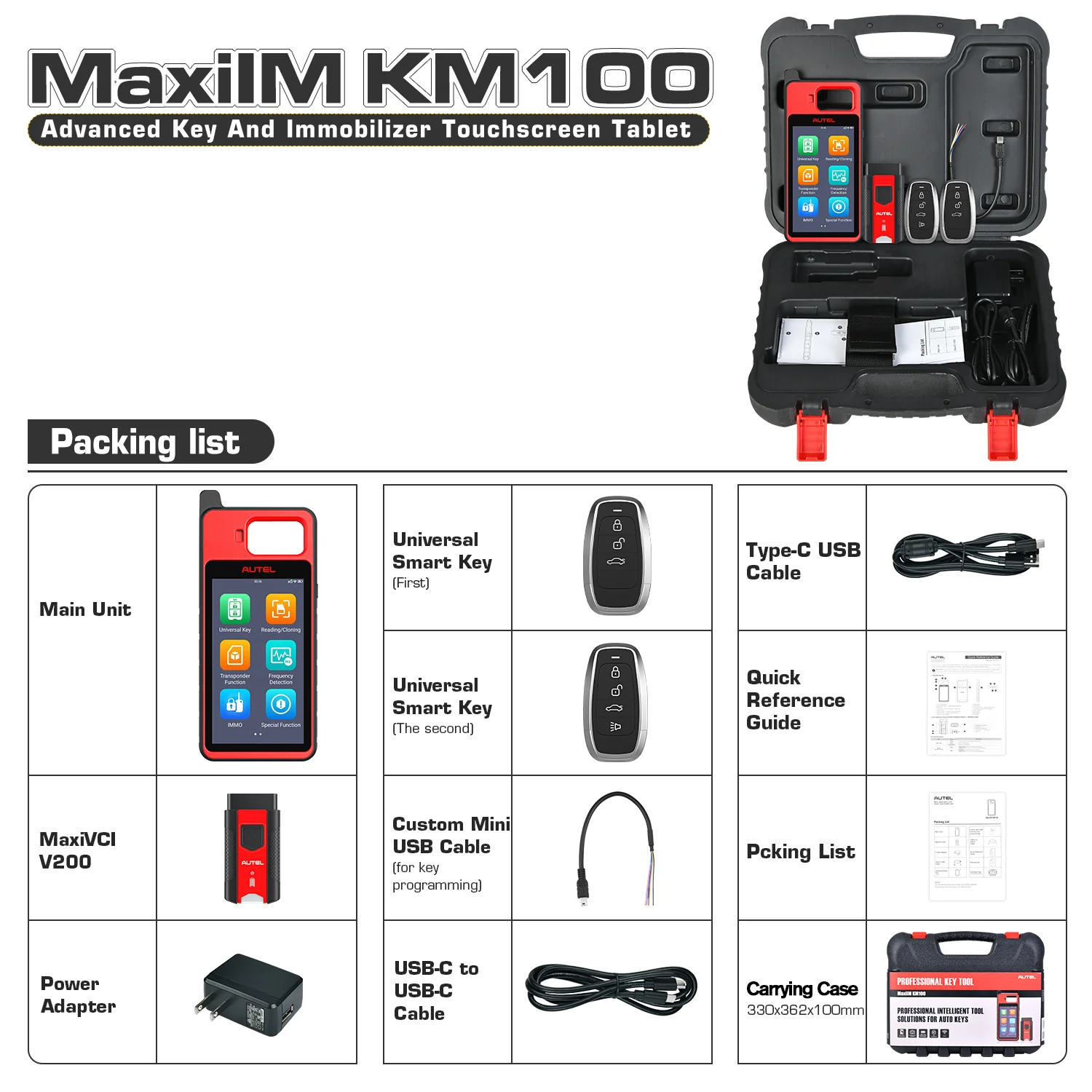

KM100 Packing List
