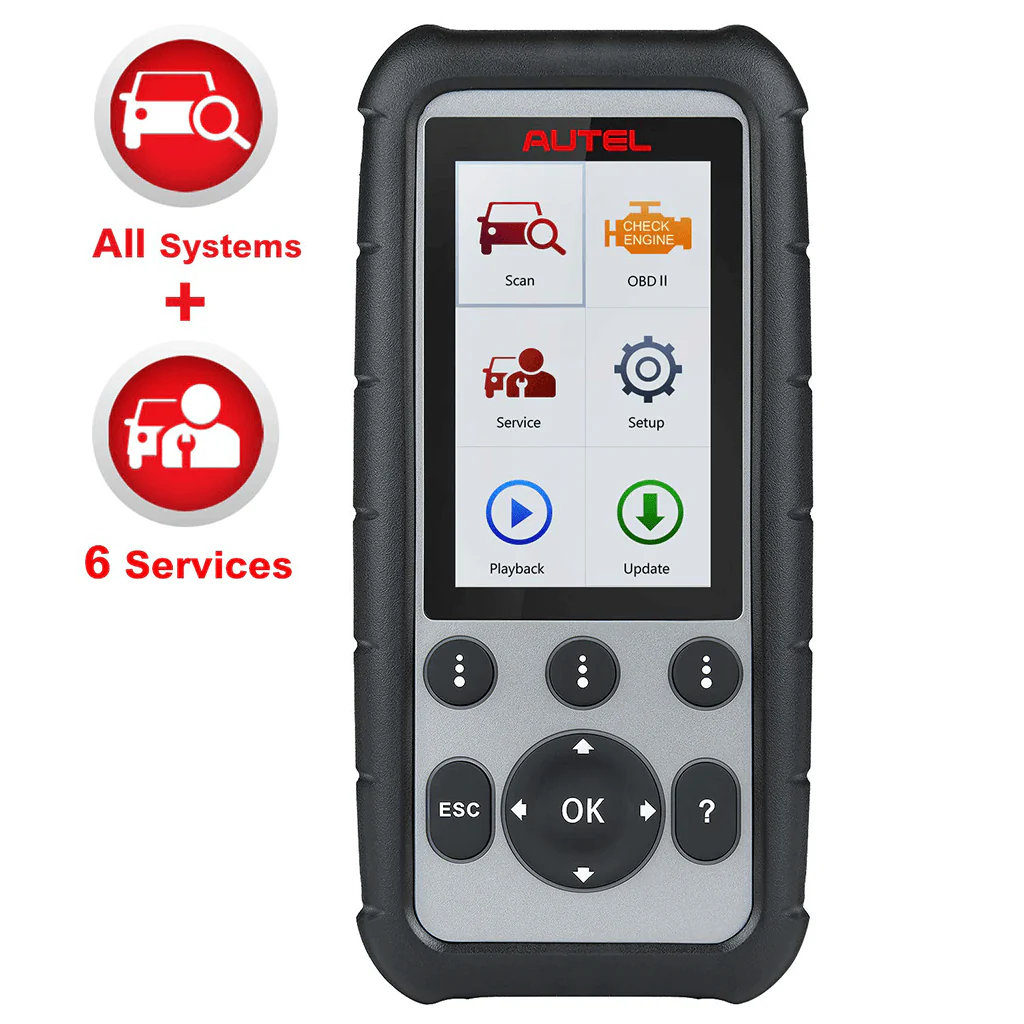

Autel OBD2 Scanner MaxiDiag MD806 Pro Code Reader

The Autel MD806Pro is an upgraded version of the Autel MD806, Autel MD802, and Autel MD808 diagnostic tools. It offers lifetime free updates, ensuring that you always have access to the latest software improvements and vehicle coverage.

In addition to the software enhancements, we have also improved the hardware. The device features a 4.0-inch LCD display with a resolution of 800*480, providing a clear and sharp visual experience. It is equipped with a fast ARM Thumb Processor running at up to 400 MHz, enabling smoother and faster operation for a better user experience.

Top Reasons to Choose Autel MaxiDiag MD806 Pro

1. Advanced Auto Scan

• MD806 Pro diagnostic scanner, with the unique Auto Scan function, can perform comprehensive scanning over all the systems on the vehicle’s ECU to locate fault systems and retrieve DTCs at one touch!

2. All System Diagnosis

• The Autel MD806 Pro allows you to diagnose all vehicle systems and subsystems, including Engine, Transmission, ABS/EPB/SRS Airbag/Oil, Suspension, Audio, IMMO Immobilizer, Air Conditioning, DPF, Auto Headlamp, ACC, Car Radio Audio, Car Door Windows, etc.
• It guides you directly to the fix, eliminating guesswork, by conducting a comprehensive scanning process on ECUs to locate faulty systems and retrieve related DTCs. It provides efficient and accurate diagnoses for effective problem-solving.

3. 7 Service Functions

• The Autel MD806 Pro offers 7 service functions to promptly address and eliminate hidden dangers. These functions include Oil Reset, Electronic Parking Brake Release, Steering Angle Sensor Calibration, Diesel Particulate Filter Service, Battery Management System Service, Throttle Matching, and Adjust A/F.
• These service functions ensure that essential maintenance tasks are performed accurately and timely, helping to prevent potential issues and ensuring the optimal performance of your vehicle.

4. Full Modes of OBDII

• The Autel MD806 Pro provides quick access to functional tests and resets with its full modes of OBDII. In addition to the previously mentioned functions, this scanner supports all 10 test modes for OBD-II cars.
• This is extremely beneficial for daily repair work, as it allows comprehensive diagnostics and testing across various systems of the vehicle.

5. DTC Lookup Library

• The Autel MD806 Pro, as an engine diagnostic tool, offers a DTC Lookup Library that helps pinpoint the exact cause of car trouble. This lookup library defines the codes, simplifying the analysis and repair process. It provides detailed code information, eliminating the need for online searches to determine the reason behind a specific code.
• By simply clicking on the selected error code, you can access an in-depth explanation of its meaning. This feature enhances efficiency and accuracy in diagnosing and resolving vehicle issues.

6. Playback and Print Data

• The Autel MD806 Pro provides a simple solution for complex diagnostic issues. It allows you to view and retrieve data from the last recorded test. Additionally, you can easily print the diagnostic report via a PC.
• his feature is particularly useful when facing problems beyond your level of understanding. Instead of explaining the issue in detail and potentially causing confusion, you can simply hand the printed diagnostics report to your technician. They can then review the report and gain a clear understanding of what needs to be done, streamlining the repair process.

7. Multilingual Support of 15 Languages

• English, Traditional Chinese, simplified Chinese, French, German, Spanish, Italian, Swedish, Portuguese, Dutch, Polish, Russian, Japanese, Korean, and Greek

8. Wide Coverage of OBDII Vehicle Models (47)

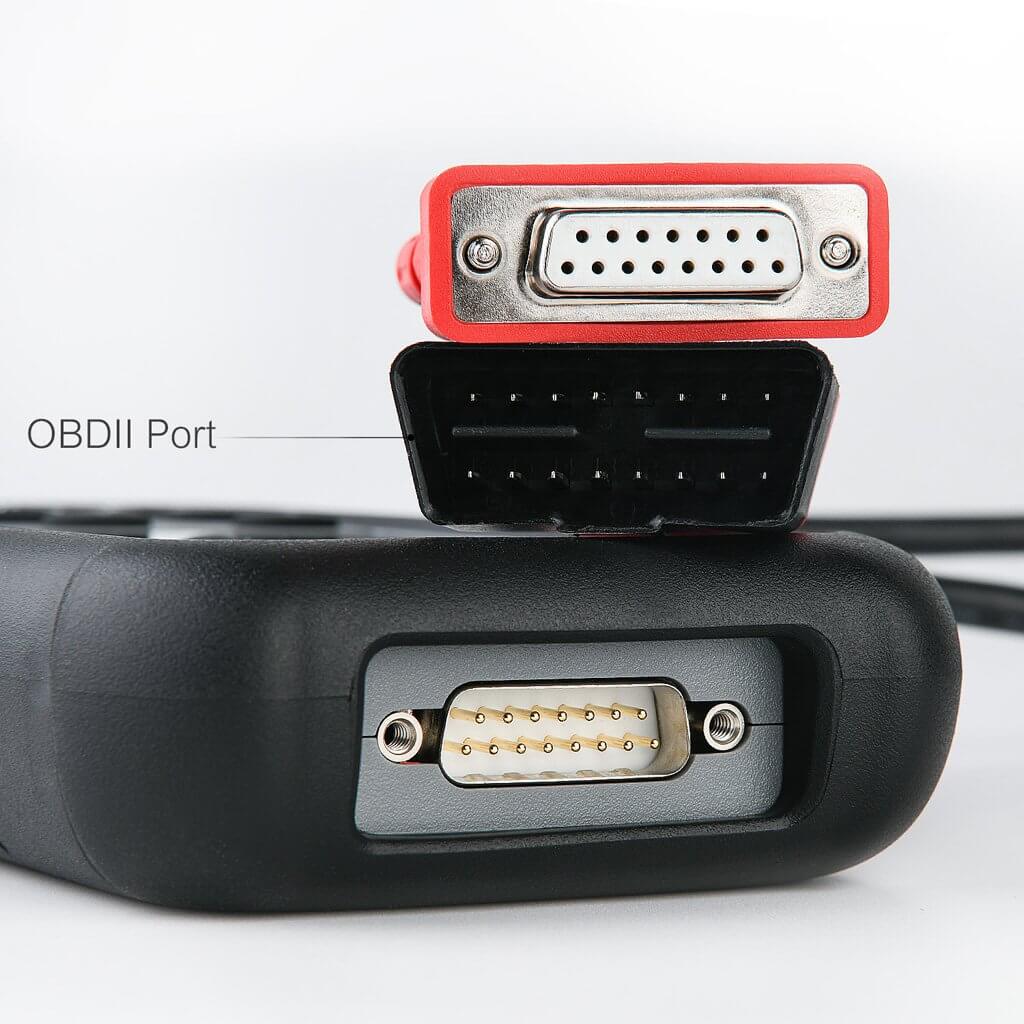

• Autel MD806 Pro has wide compatibility rates with several modes of the OBD2 motor vehicles. The scanner works on pretty much any car made from 1996 to 2015, as long as the car has a 16-pin OBD-II port.

Note: MD806 Pro OBD2 Scanner DO NOT work on all vehicles from 1996. Please email VIN number to us to check compatibility before purchase.

All Available Modules OE-Level Diagnosis

The MD806Pro is a professional-level vehicle diagnostic device that functions as a full system diagnostic scanner. It efficiently establishes a data link directly to the electronic control units of the vehicle being serviced, allowing for seamless and quick diagnostics.

The MD806Pro allows you to:

• Retrieve ECU information, including unit type, version numbers, and other specifications, for tested control units.
• Read and erase DTCs (Diagnostic Trouble Codes) to easily locate problem areas and clear the codes.
• View live data of each parameter item for real-time monitoring and analysis.
• Access all vehicle systems and subsystems, such as Engine, Automatic Transmission, ABS/EPB/SRS Airbag/Oil, Suspension, Audio, IMMO Immobilizer, Air Conditioning, DPF, Auto Headlamp, ACC, Car Radio Audio, Car Door Windows, etc.
• Perform a comprehensive scanning process on ECUs to locate faulty systems and retrieve related DTCs.

With just one click of a button, the MD806 Pro enables you to complete a full scanning of your vehicle within minutes. This allows you to diagnose the car, turn off the Check Engine Light, and quickly identify the problem whenever your car breaks down. It helps you determine if immediate attention is required and provides an estimate of repair costs.

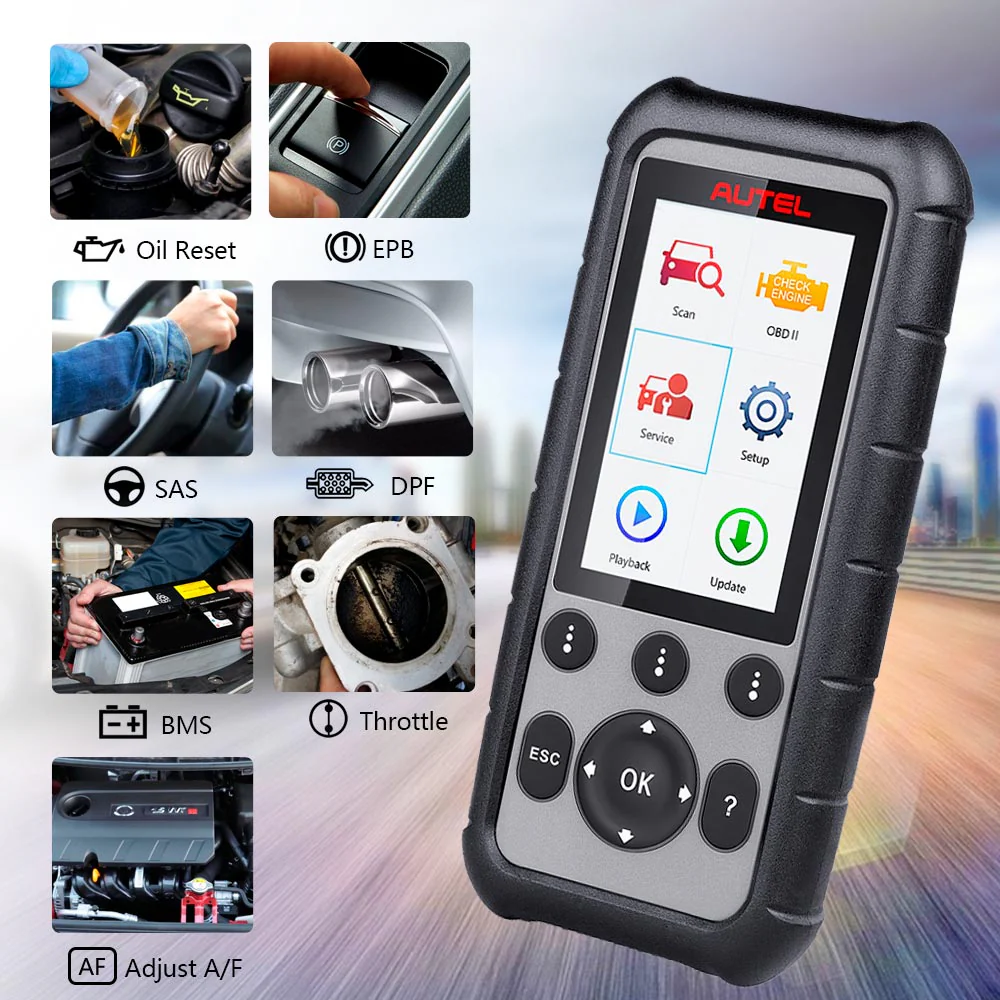

7 Advanced Maintenance Functions

The Autel MD806 Pro obd2 scanner offers 7 commonly used reset services: Oil Reset, Electronic Parking Brake Release, Steering Angle Sensor Calibration, Diesel Particulate Filter Service, Battery Management System Service, Throttle Matching, and Adjust A/F. Its Auto VIN technology quickly identifies vehicle make, model, and year information, making the vehicle navigation process easier. It also provides a DTC Lookup feature for better interpretation and analysis of retrieved codes.

Oil Reset for Engine Efficiency

The MD806 Pro Scanner offers help to reset the Oil Life Reminder (turn off the oil service light) when the replacement of engine oil is done in case of the impurities in oil may damage the engine So vehicles can recalculate another optimal oil life change interval depending on the vehicle driving conditions and climate. Your driving safety also gets ensuring.

Electronic Parking Brake Release

When the electronic parking brake cannot be released, the electronic parking brake system may malfunctions. Driving in such conditions may cause an unexpected accident. MD8006 Pro is fitted with the function of Electronic Parking Brake(EPB) Release in case of the emergency, or to help you calibrate the parking brake after you make some changes in the EPB system

Steering Angle Sensor(SAS) Calibration

The failure of SAS system can cause a dragging effect on the tires and may cause the vehicle to veer off the road. Luckily, this Autel scanner MD806 Pro can effectively perform SAS calibration (set the SAS angle to zero) and turn off the SAR error light on most vehicles, after you have undertaken wheel alignment or replaced the stability control components of your car which may lead to the SAS light popping up on the dashboard.

Diesel Particulate Filter(DPF) Service

The DPF function allows you to carry out numerous functions one the Diesel Particulate Filter system without having to send your car to a main dealer. The tool will manage DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit. You can perform the DPF cleaning to clear the blockage through continuous burning of the particulates captured in the DPF filter. And when a DPF regeneration cycle is completed, the DPF light automatically goes off.

BMS(Battery Management System) Service

The scan tool can evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, activate the rest state of the vehicle, and charge the battery via the diagnostic socket. It ensures that the battery runs as required and warns you of imminent failures of damage. Moreover, it optimizes the functionality of the battery for a smooth running of your vehicles

Throttle Matching Service

The diagnostic tool can help you make initial settings to the throttle actuators after replacement (return to the "learned" values stored), for ensuring the proper communication with ECU. So the ECU can accurately control the actions of regulating throttle (or idle engine), and adjust the amount of air intake.

Adjust A/F Service

The scanner can help adjust the a ir/fuel ratio to ensure the catalytic converter is working efficiently, to avoid the result of sparkplug getting fouled, the engine getting destroyed, and the vehicle having poor gas mileage. It helps reduce exhaust emissions thus contributing to a healthier environment.

Difference Between MD806 Pro and MD802 and MD806(MD808)

The difference between MD806 Pro and MD802 is MD802 features less special service function and a lower screen resolution, while MD806 Pro has all system diagnostics, 6 special services and advanced Auto-scan technology, MD806 Pro is a combination of Autel MaxiCheck Pro and Autel MD802.

MD806 Pro has the same function as MD808 Pro and all are the upgrade version of MD806 and MD808.

Autel MD806 Pro Specification:

Processor	Thumb® Processor running at up to 400 MHz
Memory	32MB, 166 MHz
Display	4.0 inch LCD with 800 x 480 resolution
Connectivity	Mini USB: 2.0 Micro SD Card (16GB)
Power Consumption	1.7 W
Operating Temperature	-10°C to 60°C (14°F to 140°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Operating Humidity	5% - 95% non-condensing
Housing	Strong plastic housing with protective rubber boot
Dimensions	202 mm x 92 mm x 35 mm (8.35” x 3.62” x 1.4”)
Weight	313 g (0.69 lb.)
Download	MD806 Pro User Manual

Autel MD806 Pro Packing List:

• 1x MD806 Pro Main Unit
• 1x User Manual
• 1x OBD II Cable
• 1x USB Cable
• 1x Micro SD Card
• 1x Quick Guide
• 1x Carry Case

MD806 Pro Product guides and documents

MD806 Pro User Manual (PDF)
