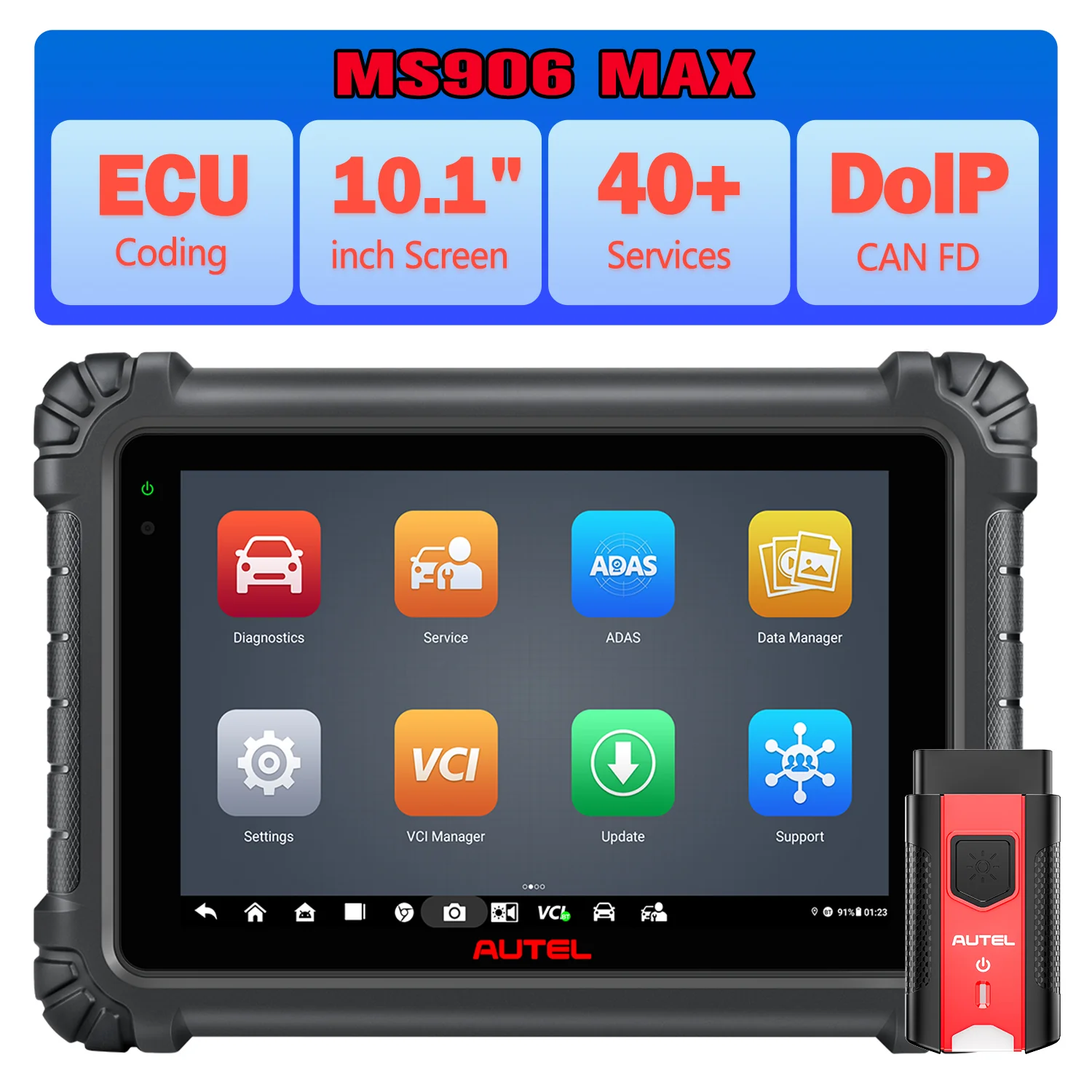

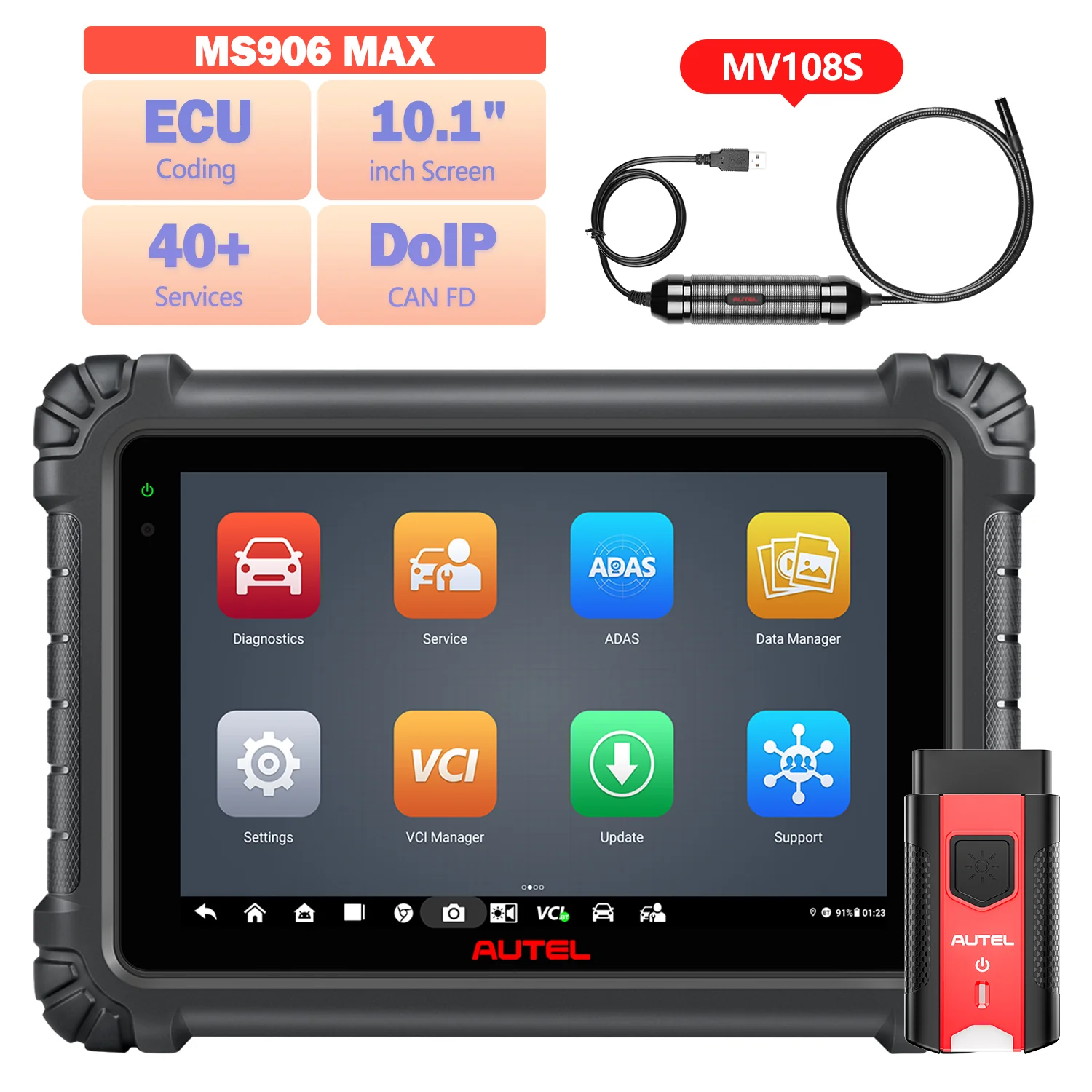

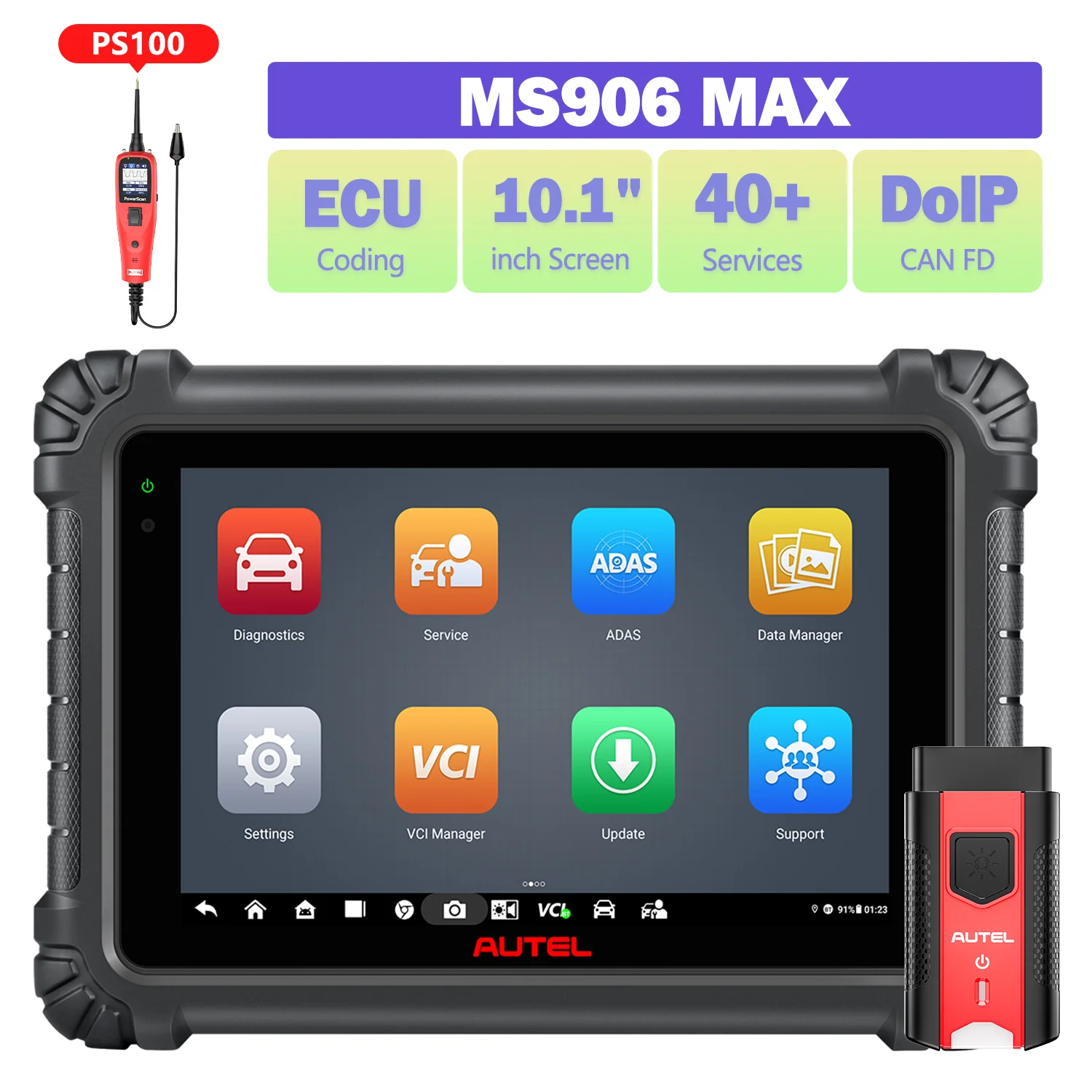

Autel Maxisys MS906 MAX MS906MAX Diagnostic Scanner, Big 10.1 Inches Screen Android 10.0, Support ECU Coding 40+ Services CAN FD & DoIP, Auto Scan 2.0, Bi-Directional Control, Upgrade of Autel MS906 PRO MS906BT
Autel Maxisys MS906 MAX Diagnostic Scanner 2026
The MaxiSys MS906MAX represents a major upgrade in both hardware and software, delivering 10X faster diagnostic speeds. Transitioning from Android 4.4.4 to the flagship Android 10.0, it is powered by a high-performance octa-core processor, with 4GB RAM and 128GB storage, ensuring seamless operation. Its 10.1" display offers a sharp 1920 x 1200 resolution, complemented by dual 13MP cameras for advanced diagnostics. The 11600mAh battery provides up to 10 hours of continuous use. Furthermore, with the latest 2026 Auto Scan 2.0 technology, the MS906MAX performs scans in mere seconds.
Autel Maxisys MS906MAX Scanner Main Features
Hardware
- Android 10.0 OS, powerful Octa-core Processor
- 10.1" inch 1920x1200 resolution, 11600mAh battery
- 4G RAM & 128G ROM, Rear 13M Camera
Software
- Advanced ECU Coding: The MS906 MAX supports ECU coding, allowing you to recode and reprogram new ECUs, modify parameters, match and learn ECU modules, and update ECU coordination. You can disable unwanted functions, activate hidden advanced features, and unlock vehicle capabilities. Additionally, the tool enables you to customize settings and optimize vehicle performance, offering full ECU coding and adaptation support.
- DoIP/CAN FD Protocol: allows to code BMW F&E chassis and Porsche, and V200 provide brand-new DoIP/CAN FD Protocol to cover 99% vehicles.
- 40+ Maintenance Services: Integrates 40+ services, meeting 99% of maintenance needs. Such as Oil Reset, ABS, EPB, SAS, Throttle, etc.
- Battery Test: Work with BT506 to perform complete battery test
- OE-Level Diagnosis: Read DTCs and data streams for all available systems. Such as engine, ECM, TCM, PCM, BCM, etc.
- Bi-directional Control/Active Tests: Performs real active tests that can send commands to the vehicle's ECU.
- Refresh Hidden Features: Activate the hidden features already programmed to the car computers.
- Auto Scan 2.0: Significantly optimized scanning speed of all vehicles with CAN protocols, speeding up scanning to 5X faster than before.
- Pre & Post Scan, Scan VIN & Scan License via the camera, Wifi Print, Work with MV108S and BT506 get full charging test and cranking test, 1 Year Free Update, etc.
Autel Maxisys MS906 MAX With ECU Coding Function
The Autel MS906 MAX diagnostic tool offers a range of advanced features that were previously only available on dealership tools. It enables users to perform functions such as refreshing hidden functions, disabling annoying features, enhancing vehicle performance, customizing OE settings, reprogramming adaptive data for specific components after repairs or replacements, and configuring personalized settings for high-end models. These capabilities not only improve fuel efficiency but also ensure safe driving.
Unlock Hidden Functions
Stimulate hidden functions like Auto Park function, tilting rear-view mirrors, one-button lift window, start and stop memory, cancel power-on rule statement, display digital speed, residual temperature control, adjust turn signal flashing times, single door opening function, automatic window closing function for VW, BMW, Audi, Skoda, etc.
ECU Replacement
Featuring ECU/Module replacement functions, Maxisys MS906 MAX Bi-directional Scanner can help you initialize, match, relearn, or code the newly replaced ECU/module to get it back on track. Compatible with Asian cars like Honda, Nissan, Toyota, Hyundai, Kia, etc. Introduce the new ECU module replacement to the car system and make the cars running smoothly.
Programmable Module Installation(PMI)
Download old data from the existing module and then uploaded to the new module.
Customize Your Own Car
- After you change the bad component or certain parts, you need to use this function to make a new code and recognize the new modules.
- By changing the code with the ECU coding, it's easy to improve vehicle performance or stimulate high-end functions for the car.
- ECU Online Coding Compatible with Volkswagen, BMW, Porsche, etc. Obtain the online data from the server and no need to match ECU manually; Code your car fast and easily via Internet to solve your car's problems; Restore the vehicle functional status after replacing the on-board modules.
Autel Maxisys MS906 MAX with 40+ Hot Service Functions
The Autel MaxiSys MS906 MAX OBD2 diagnosis scanner not only has powerful diagnostic functions but also has a vast range of service functions, which will help you easily complete repair work. A money saver for home technicians and money maker for car workshops.
Injector Coding--- Code new injector numbers to replace the previous one when fitting the new injectors or after the replacement is completed;
Brake Reset--- Deactivate and activate the brake control system, assist with brake fluid control, open and close brake pads, etc.;
GEAR Learn--- Perform gear learning for the car when the engine ECU, the crankshaft position sensor, or the crankshaft flywheel is replaced.
Oil Reset--- Reset the oil life systems every time the oil and oil filter are changed;
SAS Reset--- Perform steering angle sensor calibration and clear records;
BMS Reset--- Evaluate the battery charge state, register the battery replacement, etc.; More completed battery and starter-related detail working with BT506;
ABS Bleeding--- When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity;
Relearn Throttle--- Initialize the throttle so that the “learned” values stored on ECU are returned to the default state;
DPF REG--- Clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode to stabilize the filter performance;
Note: Services and Reset functions are not universal to all the cars, please check compatibility with your VIN before you order.
Full Bi-directional Control Automotive Scanner
Maxisys MS906 MAX 2026 newest car scanner diagnostic tool features full bi-directional control ability, to send commands to the vehicle's systems/components, to verify system input/output without using the vehicle's controls.
- Fuel Injector Balance, Injector Tests
- Cylinder Deactivation, A/C Compressor Clutch Relay On/Off
- Cycling ABS Pump Motor, EVAP Tests
- Switch on/off car wipers, Rolling up/down car windows/doors/sunroof
- Cooling fan motor command, Interior lighting test, High beam test
OE-Level Diagnosis Same as Original Factory Equipment
Autel MaxiSys MS906MAX car diagnosis expert can read DTCs and data streams for all available systems, and perform active test on the most extensive vehicles.
For instance:
- Engines/ Auto Transmission/ Airbags/ Immobilizer/ABS/ Cruise Control/Instruments/ Self Leveling Suspension systems/Seats/ Doors/ Gateway/ Steering Angle/ Air Suspension/ Body Systems/ Electronic Parking Brake & Motor Assisted/ Power Steering/ Tyre Pressure / Rain Sensors / Stabilizer/ Intelligent Parking Assist/ Door Motors/ Audio Systems/ Air Conditioning/ Tiptronic/ Anti-Theft/ Soft Top/ Headlamp Leveling/ Automatic Clutch/ Headlights/Wash Wipe/ Cruise Control/ Multi Function Steering Wheel/ Aux Heating/ Clutch Electronics, etc.
Autel Maxisys MS906MAX in Extensive Vehicle Coverage
USA:
GM, GMC, Ford, Chrysler, Dodge, Jeep
Asia:
Acura, Daewoo, Daihatsu, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Maruti Suzuki, Mazda, Mitsubishi, Nissan, SsangYong, Subaru, Suzuki, Toyota, GTR, Scion
Europe:
Benz, Sprinter, BMW, Fiat, LandRover, Maserati, Opel, Peugeot, Porsche, Lancia, LT3, Maybach, Mini, Seat, Skoda, Vauxhall, Renault, Saab, Smart, Volvo, Volkswagen, Abarth, Alfa, Audi, Bentley, Citroen, Dacia, Ford, Jaguar, Lambor Ghini
Autel Maxisys MS906 MAX Specifications
| Model | MS906 MAX |
| Operating System | Android 10 |
| Processor | Octa-core Processor |
| Memory | 4 GB RAM & 128 GB On-board Memory |
| Battery | 11600 mAh 3.85 V Lithium-polymer Battery |
| Display | 10.1-inch LCD Capacitive Touchscreen with 1920 x 1200 Resolution |
| Camera (Rear) | 13 MP |
| Connectivity | Wi-Fi (802.11 a/b/g/n/ac) BT 5.0 (BR/EDR + BLE) GPS USB 2.0 (Two USB Host Type A, one Mini USB) SD Card (Support up to 256 GB) |
| Audio Input / Output | Microphone Dual Speakers 3-band or 4-band 3.5 mm Headset Jack |
| Operating Temp. | 0 °C to 50 °C (32 °F to 122 °F) |
| Storage Temp. | -10 °C to 60 °C (14 °F to 140 °F) |
| Protocols | ISO13400, CAN FD, PLC J2497, ISO-15765, SAE-J1939, ISO- 14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO- 11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAEJ2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2) |
Packing List
- 1x MS906MAX Main Unit
- 1x MaxiVCI V200
- 1x AC/DC Power Adapter(12V)
- 1x USB Type-C Cable
- 1x Auxiliary Power Outlet Adapter
- 1x Spare Fuse 6x30mm(2pcs)
- 1x USB to Ethernet Adapter
- 1x Quick Reference Guide
- 1x Packing List(This document)
- 1x Soft Cloth
- 1x Carrying Case
MS906 MAX Comparison Chart
MS906 MAX Product guides and documents
Maxisys MS906 Max User Manual (PDF)
