Autel MaxiSys Ultra S2 - Smarter, Faster, More Powerful

The Autel Ultra S2 takes automotive diagnostics to the next level with a larger 13.7-inch anti-glare touchscreen, a faster 2.7G 8-core processor, and double the storage (512GB) compared to the original Ultra. The new VCMI2 offers Remote Expert functions, and the enhanced Topology 3.0 provides clearer vehicle network analysis. With Wi-Fi 6, faster charging, improved live graphing, and AI-powered image analysis for detecting dents and scratches, the Ultra S2 is the ultimate tool for professional technicians.

Autel MaxiSYS Ultra S2 Diagnostic Tablet with VCMI2 & AI

• Software and Warranty: Includes 1-year free warranty and two years free updates.
• Motor TruSpeed Repair: 2026 Newly Released feature, With Comprehensive OEM-Sourced Repair and Service Data.
• MaxiSYS Ultra S2: 13.7-inch touchscreen Android-based tablet featuring 512GB of storage and a 6-in-1 vehicle communication and measurement device.
• Comprehensive Coverage: Supports U.S., Asian, and European vehicles (1996 and newer) with advanced diagnostics, including active tests, special functions, and coding/adaptations.
• Topology 3.0: OE-Style System Analysis of Multi-Speed Communication Protocol Networks; Active Module and Network Analysis to locate and directly ping ECUs for testing signal quality and network integrity.
• Enhanced Oscilloscope: Launch Scope directly from Live Data; EV Tests, including AC/DC Charging, HV Component, Interlock Loop Signal, Power-On Control, Resolver Sensor, and Thermal Management System; Added Parasitic Current Draw and Swing Tests.
• Multi-point Digital Vehicle Inspection: AI-powered image analysis for auto-detection of dents and scratches; Pair with Autel TBE200 Tire Tread Examiner and ITS600 TPMS tool for detailed tire analysis.
• MaxiFlash VCMI2: Advanced VCI/J2534 pass-thru programmer, 4-channel Oscilloscope, Multimeter, Waveform generator, CAN-Bus Tester, and standalone Remote Expert device, all in a lighter, streamlined chassis.
• Data Visualization: Enhanced graphing capability to visualize multiple parameters, helping to identify the relationship between PIDs and pinpoint system anomalies.
• Live Data Fusion: Record and compare value changes across multiple systems.
• Parameter Grouping: Multi-PID selection for analyzing related parameters simultaneously.
• Reference Sampling: Record, store, and review selected PIDs for pre- and post-repair comparison, highlighting min, max, and average values.
• Service Menu: Features 48+ maintenance and service tasks, providing direct access to commonly performed service functions and resets.
• Hands-Free Navigation: MAX, a virtual assistant, enables hands-free operation of the Ultra S2 interface.
• Enhanced Docking Station: Tablet "Fast Charge" support for improved efficiency.

Motor TruSpeed Repair (Optional)

What's Motor TruSpeed Repair

• Online Data Base
• Advanced Searching Ability
• Comprehensive OEM-Sourced Repair and Service Data
• Most Up-to-date Information

How Motor TruSpeed Repair Works

• Identify all system faults, and tap the relevant diagnostic trouble code on your tablet for analysis
• Review all vehicle-specific MOTOR TruSpeed Repair data and relevant information. Then tap the applicable entry.
• Begin your diagnostic, repair, and service research and analysis, and discover the solution.

Note: Motor TruSpeed Repair requires extra purchase with 650 bucks/year.

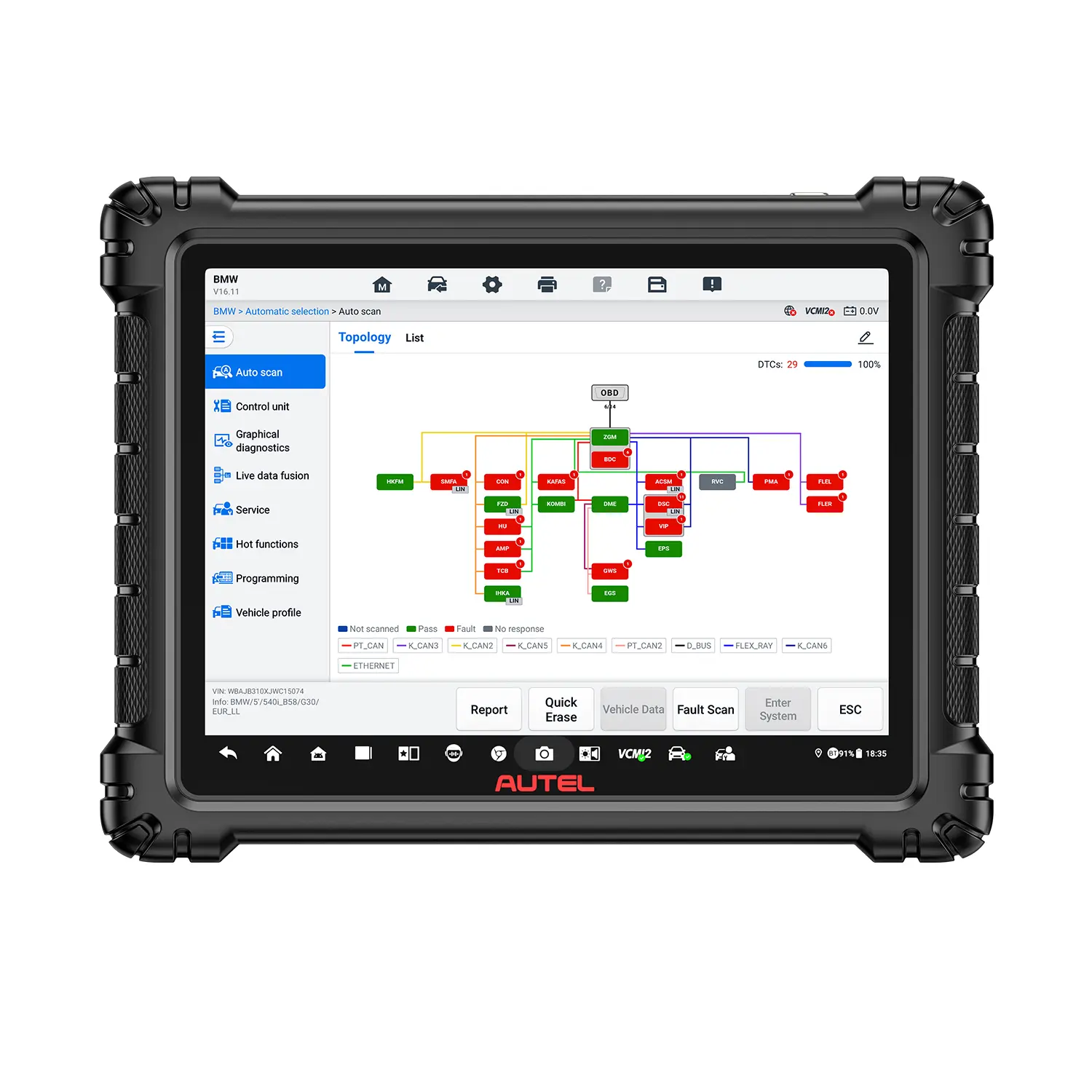

Autel Ultra S2 OBD2 Scanner with Topology Map 3.0

The Autel Automotive Scanner Ultra S2 features enhanced Topology Mapping 3.0, providing OE-style system analysis for multi-speed communication protocol networks. It visually maps Electronic Control Units (ECUs) and allows direct ping operations, helping technicians diagnose issues efficiently. With color-coded indicators, users can quickly identify the status of each module, enabling fast and precise troubleshooting in seconds.

• OE-Style System Analysis of Multi-Speed Communication Protocol Networks
• Active Module and Network Analysis: Locate and Directly Ping ECUs to Test Signal Quality and Network Integrity
• At-a-Glance Color-Coded Module Status

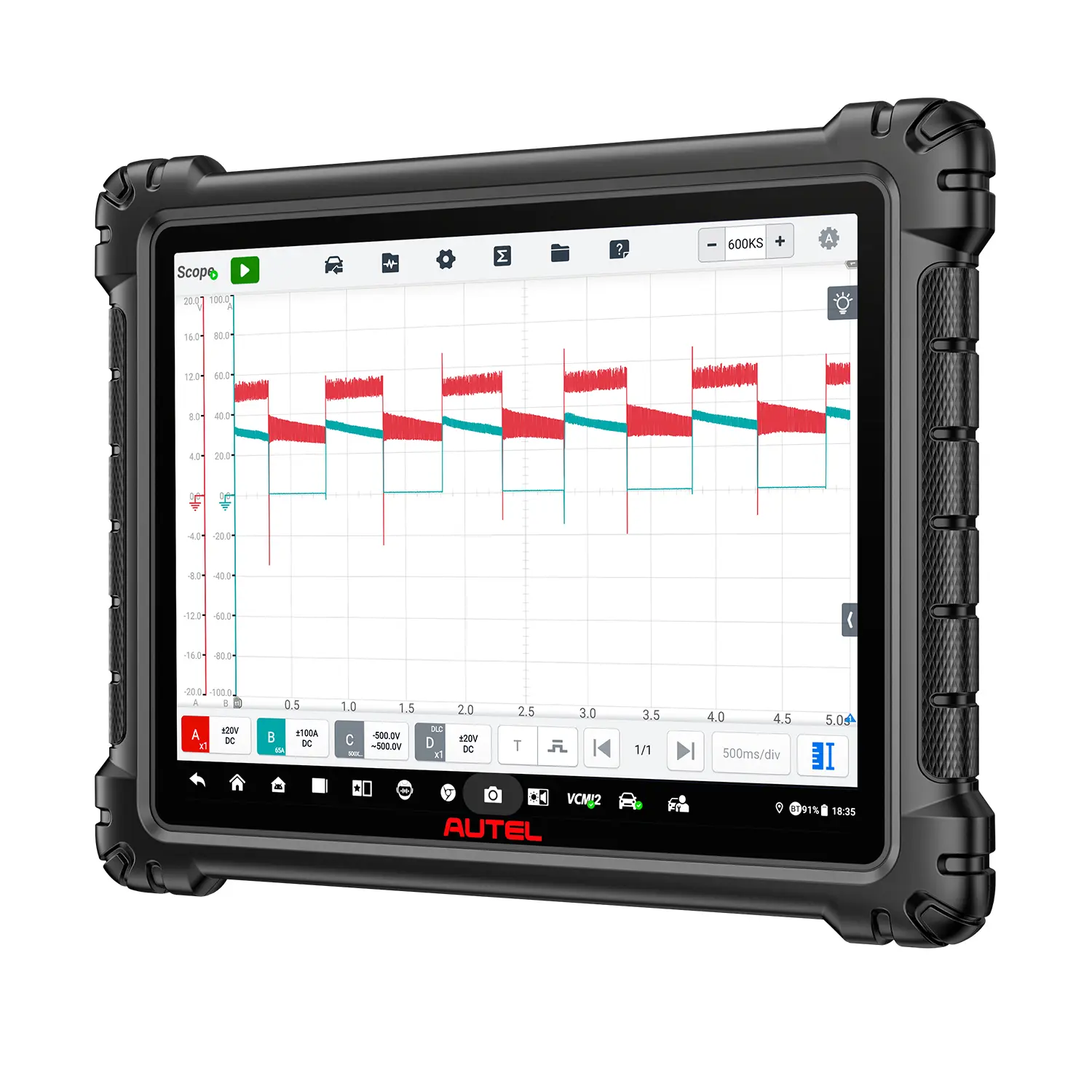

Autel Ultra S2 with Enhanced Oscilloscope Functionality

The Autel Ultra S2 Scan Tool features an enhanced oscilloscope powered by the VCMI2's improved 4-channel system, delivering higher accuracy, faster sampling rates, and better signal resolution. This advanced functionality enables professional technicians to capture, analyze, and diagnose complex waveforms across multiple vehicle systems simultaneously. With intuitive visualizations and real-time data processing, the Ultra S2 helps pinpoint electrical issues with precision, making it an essential tool for in-depth diagnostics.

• Launch Scope directly from Live Data Analysis
• New Comprehensive Electrical Vehicle Tests: AC and DC Charging, High Voltage Component, Interlock Loop Signal, Power-On Control, Resolver Sensor, and Thermal Management System
• Added Parasitic Current Draw, Swing Tests

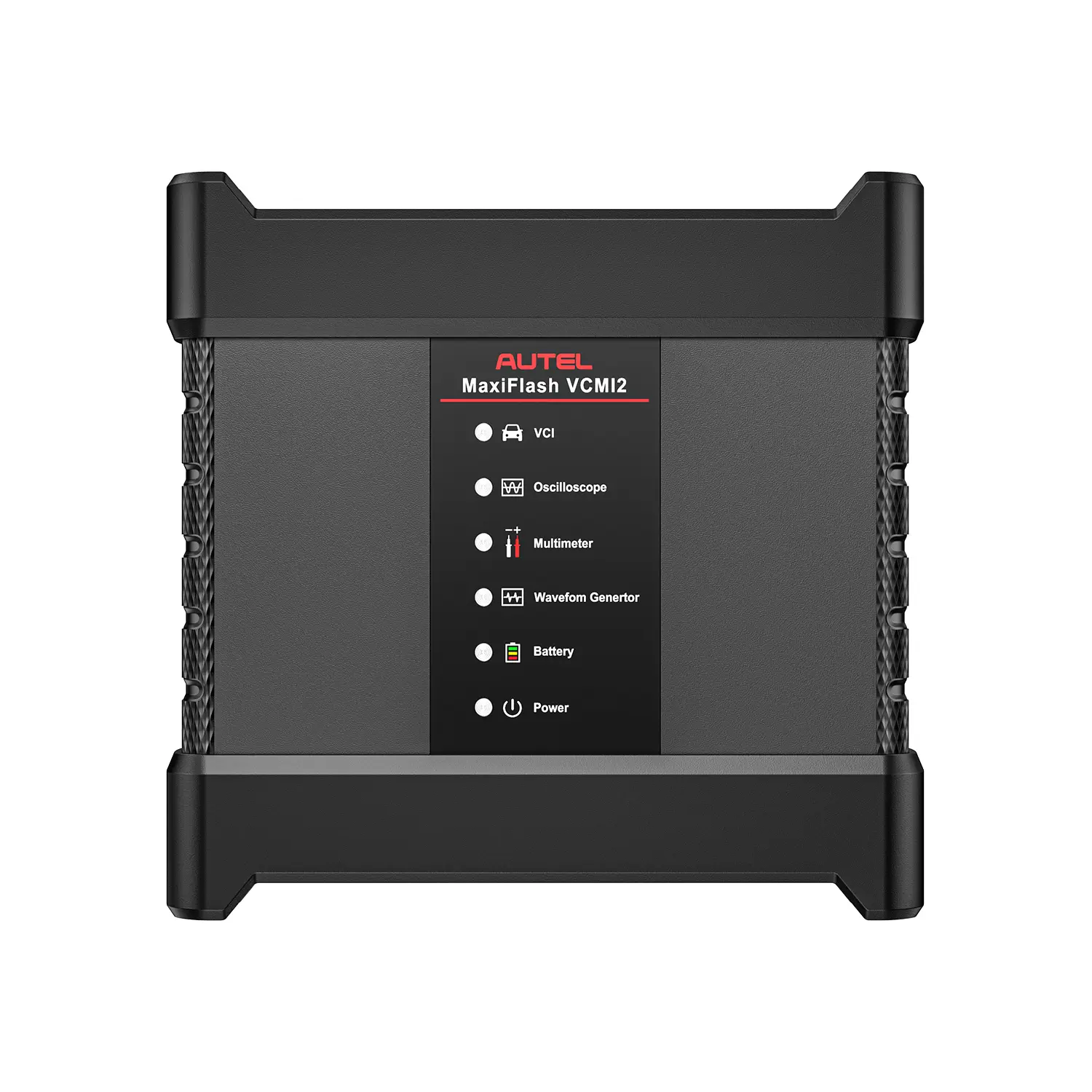

Autel Ultra S2 6-in-1 MaxiFLASH VCMI2

Autel Maxisys Ultra S2 comes with Advanced VCI/J2534 pass-thru programmer, improved 4-channel oscilloscope, Multimeter, Waveform generator, CAN-Bus Tester, and standalone Remote Expert device, all in a lighter and more compact chassis.

Autel Ultra S2 with Hands-Free Virtual Assistant

The MAX enables hands-free navigation of the Ultra S2 interface and provides verbal command functionality for various tasks and functions. Effortlessly initiate a system scan, access maintenance tasks, or execute active tests.

Advanced Digital Vehicle Inspection

Thorough Multi-point DVI

• AI-powered image analysis for auto-detection of dents and scratches
• Pair with Autel TBE200 Tire Tread Examiner and ITS600 TPMS tool to produce detailed tire analysis
• Analyze vehicle damage and inspect parts and components for current and future services to increase revenue and customer satisfaction

Data-Driven Diagnostics With Enhanced PID Analysis

• Data Visualization: Enhanced graphing capability to visualize multiple parameters to identify the relationship between PIDs and pinpoint system anomalies.
• Live Data Fusion: Record and compare value changes across multiple systems
• Parameter Grouping: Multi-PID selection for analyzing related parameters simultaneously. Ideal for engine fault and performance and emissions troubleshooting.
• Reference Sampling: Record, store, and review selected PIDs for pre- and post-repair comparison that will flag min, max, and average
• Real-Time, Split-Screen Analysis: Access the oscilloscope directly from the current Live Data screen

Enhanced Split-Screen Diagnostics

Diagnostics + X (multiple applications)

• Live Data + Oscilloscope
• Topology + Component Location
• Fault Scan + Ping Network
• Topology/List + Data Trouble Code (DTC)

Specifications

Item	Description	MaxiSys Ultra S2
Hardware	Processor	2.7G8-core
	Storage	12GB+512GB
	Screen	13.7" Anti-glare Screen (2176x1600)
	Android System	Android 13
	Battery	18000 mAh
	Camera	R:16M, F:16M
	Wi-Fi	Dual Wi-Fi 6
	DC Fast Charging	DC
	Bluetooth	Supported
	VCI	VCMI 2
	Oscilloscope	4 Channel
	Multimeter	Supported
	Charging Dock	Fast Charge
Diagnostic Function	Voice Assistance	Fast Charge
	Topology	Supported
	Auto Scan	Based on ECU Network + module location
	Graphic Live Data Scream	Yes
Protocols	DolP	Supported
	CanFD	Supported
	J2534	Supported
	D-PDU	Supported

Packing List

• 1 x Ultra S2 Main Unit
• 1 x MaxiFlash VCMI2
• 1 x Docking Station
• 1 x Main Cable V2.0
• 1 x USB 2.0 Cable V2
• 1 x AC/DC Adapter (12V)
• 1 x Auxiliary Power Outlet Adapter
• 1 x Spare Fuse 6*30mm 2 PCS
• 1 x Clamp CABLE
• 1 x Attenuator 20:1
• 1 x USB Type-C Cable
• 1 x Scope Test Lead 1x4PCS
• 1 x Multimeter Test Lead 1x2PCS
• 1 x Secondary Ignition Pickup 2PCS
• 1 x Breakout Lead 4x6PCS
• 1 x Multimeter Probe 1x2PCS
• 1 x Flexible Back-pinning Probe 2x2PCS
• 1 x Back-pinning Probe - Red/Green/Blue/Yellow/Black 1x5PCS
• 1 x Back-pinning Probe Screw 2PCS
• 1 x Back-pinning Probe Replacement Needle 20PCS
• 1 x Small Alligator Clip 2x2PCS
• 1 x Large Dolphin Clip 1x2PCS
• 1 x USB to Ethernet Adapter
• 1 x Quick Reference Guide
• 1 x Packing List(This document)
• 1 x Soft Cloth
• 1 x Tool Box
• 1 x Accessory Storage Bag
• 1 x Carrying Case
