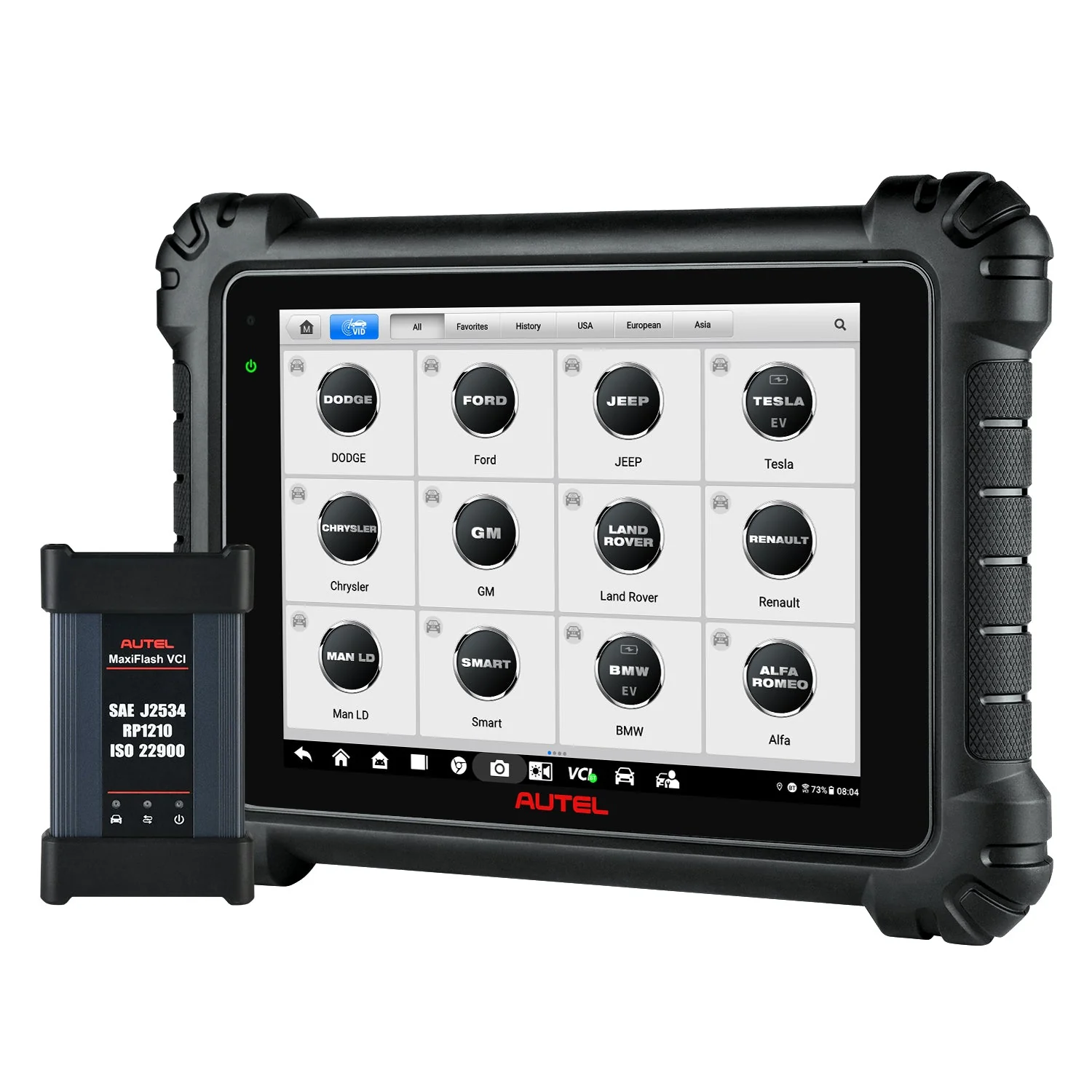

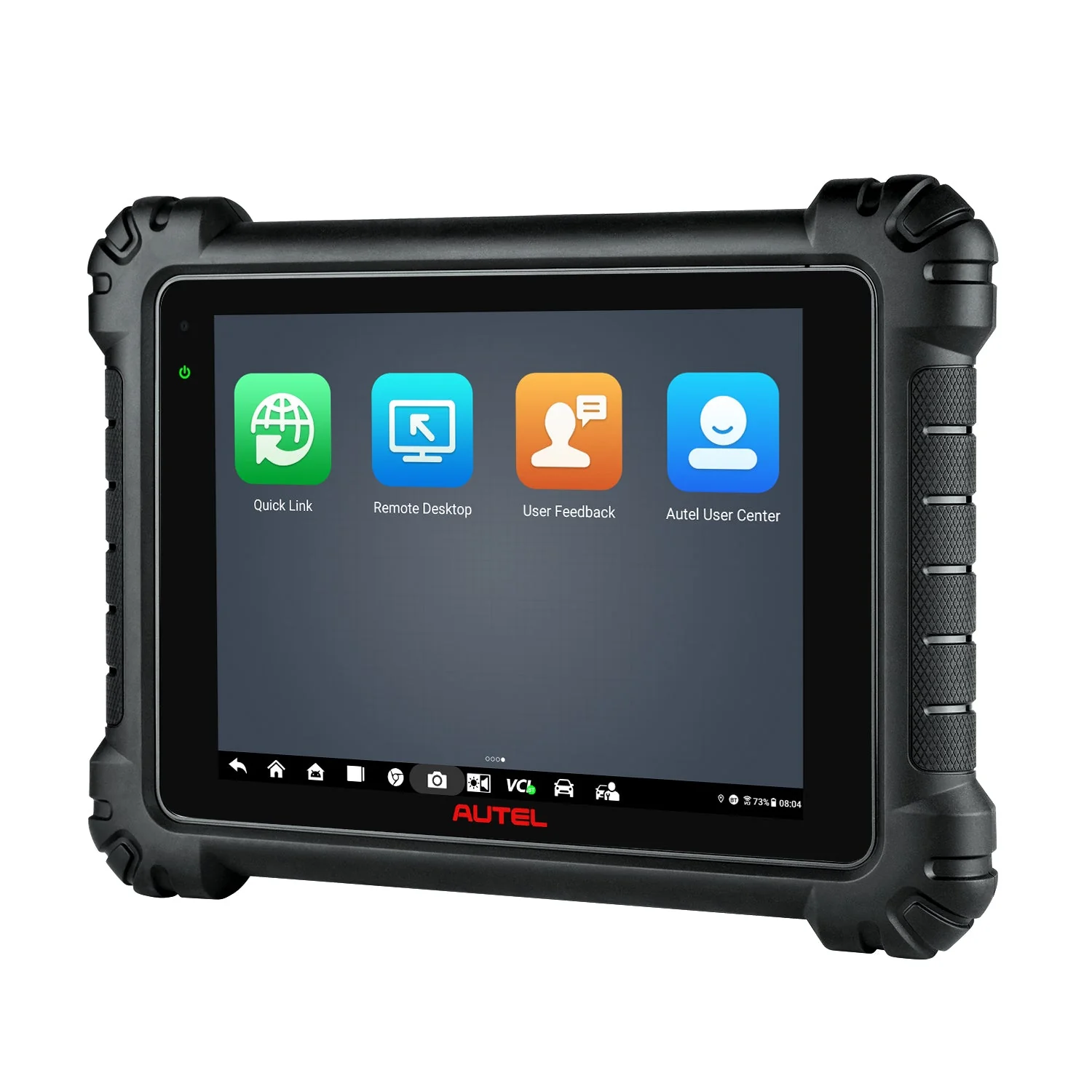

Autel Maxisys MS909EV Electric Vehicle Diagnostic Scanner

The Autel MaxiSys MS909EV is a new generation of intelligent diagnostics scanner for electric, hybrid, gas and diesel vehicles. With its dedicated EVDiag Box, MaxiFlash VCI, and features High-Voltage System, Battery Pack Test, Intelligent Diagnostics & Topology, ECU Programming & Coding, 40+ Hot Services, Tesla & McLaren Diagnostic, Active Test & VAG Guided Functions, the MaxiSYS MS909 EV - Electric Vehicle Diagnostic Scan Tool provides a comprehensive approach to advanced electric and hybrid vehicle diagnostics. It's really a good choice to prepare for electric vehicle future, which will help you win more business.

Why Autel Maxisys MS909EV Stands Out?

• EV High-Voltage System Diagnostics: Scan HV System for Codes, Clear Codes, Diagnostic Reports, HV Parts Replacement for Electric Vehicles.
• Out-of-Vehicle Battery Pack Analysis: Battery Health, SOC, SOH, Temperature, Battery Maintenance for Electric Cars.
• Wide EV Vehicle Coverage: Compatible with New Energy Vehicles of BMW, VW, Audi, Skoda, Tesla, Ford, GM, etc.
• Top Intelligent Diagnostics: Provides One-Stop Solution for DTCs, Technical Services Bulletins, DTC analysis, Repair Assist & Tip, Relevant Cases.
• Enhanced Topology Map 2.0: Offers a visual representation of relationships elements within a communications network for BMW, Ford, Audi, Chrysler, Honda, Toyota, etc.
• Advanced ECU Programming & Coding: Program New blank ECU Modules for BMW & Benz, and reprogramming the adaptive data to ensure optimal performance after repair or replacement for BMW, Porsche, VW, Audi, etc.
• 40+ Hot Services: MS909EV has been designed with 40+ commonly-used service functions, surpassing many other Autel Maxisys Scanners.
• Bi-directional Control, All System Diagnostics, VAG Guided Functions, Uncover Hidden Features.
• Pre & Post Scan, Built-in AutoAuth Service, Access 2018+ FCA SGW Cars, AutoVIN, Scan VIN/Plate, etc.

Do you have the appropriate tools for repairing your EV?

The popularity of electric vehicles is rapidly increasing, and while they offer unique benefits, they can still experience issues requiring diagnosis and repair.

Autel's diagnostic tools have kept pace with evolving EV technology, and the Autel MaxiSys MS909EV is a cutting-edge scan tool that exceeds other professional EV scanners on the market, such as the Snap-On Pass-Thru Pro IV and Pad II AE. The Autel MaxiSYS MS909EV, acting as the MaxiSYS Ultra EV, accurately diagnoses and troubleshoots various components of electric and hybrid vehicles, including the battery management system, electric motor, and charging system. This reduces downtime, repair costs, and extends the life of EV vehicles, representing a game-changing diagnostic tool for all cars/vehicles.

Worldwide Electric Vehicle Coverage

Autel Maxisys MS909EV functions as Maxisys Ultra EV, can accurately diagnoses and troubleshoots various components of electric and hybrid vehicles.

• For HV System Diagnostics:

This MS909EV not only supports many gas and diesel vehicles, but also compatible with compatible with LEXUS, Buick, Tesla, Ford, Chevrolet, Honda, GMC, Cadillac, BMW, VW, Renault, KIA, Hyundai, Audi, Nissan, Skoda, MINI, TOYOTA, Mercedes-Benz, Volvo, Porsche, Buick, BYD, FAW Audi, Chevrolet, etc.

• For out-of-vehicle Battery Pack Analysis

Compatible with BMW, Ford, BYD, GACMotor, Geely, GM, GreatWall, Honda, Hyundai, Nissan, Renault, Saicmg, SGMW, Tesla, Toyota, VW, ChangAn, etc.

Maxisys MS909EV Complete HV System Diagnostics & Battery Pack Analysis

OE-Level High-Voltage System Diagnostics

When it comes to accessing high-voltage systems found exclusively in HYBRIDs, PHEVs, and BEVs, traditional OBD I and II diagnostic scanners are inadequate. They lack the ability to retrieve detailed information on every module of the battery pack, identify faults, or diagnose electrical control equipment in EVs.

The Autel MS909EV ULTRAEV scanner offers high-voltage system diagnostics, allowing you to read and clear DTCs, live data, and run active tests on an EV's exclusive high-voltage system just like a dealership EV scan tool. This is critical for complex troubleshooting of new energy vehicles.

Advanced HV System Block Diagram

Are you struggling with electric vehicle diagnostics and lacking sufficient knowledge? Are you spending a lot of time searching for information on HV circuit diagrams and component locations for new EV systems?

If so, the Autel MS909EV car computer tablet can help you tackle these challenges.

• The MS909EV provides a comprehensive overview of the entire HV system structure and identifies the location of faulty parts.
• It contains essential information on related lines and plugs with detailed tips, and allows you to zoom in/out on specific parts. The tool also highlights component-related lines and automatically locates components when searched, making it easier to read.
• With MS909EV, you'll have the support of operating guidance that is well-explained using text, graphics, and training videos to ensure you can perform secured and proper operations.

Out-of-Vehicle Battery Pack Analysis

Once an EV battery has been installed in a vehicle, it can be difficult to determine its working status. Autel MS909's out-of-vehicle battery pack analysis can be very helpful in this regard.

• MS909EV features an easy gauge-mode interface that displays the State of Charge (SOC) and State of Health (SOH) of the battery pack, along with other important data such as voltage, current, and temperature for easy comprehension of complex EV battery information.
• The tool provides maintenance recommendations, repair tips, and heads up, so you won't need to surf the internet for references.
• MS909EV also clearly shows each battery module's exact location, ensuring that every installation is performed with precision and care.

It should be noted that MS909EV is an updated version of MaxiSYS MS909, MS919, Elite II, and MS908S PRO, with the newest EVDiag Kit and complete EV diagnostic capabilities.

Powerful Intelligent Diagnostics & Topology Mapping 2.0

Enhanced Topology Map 2.0: See More, Operate Less

This Autel Maxisys MS909EV offers a visual representation of relationships elements within a communications network for you.

• Instantaneously get a glance of crucial information such as the number of systems, scanned systems, and corresponding scan results
• Directly access the current status of each module, including the presence and number of DTCs.
• Filter out healthy and faulty systems with distinct colors for easy analysis.
• Systematically present the communication structure between each module.
• Support over 50 leading car brands, including but not limited to BMW, Ford, Audi, Chrysler, Nissan, Honda, Toyota, Lexus, Land Rover, Jaguar, Benz, VW and More

Intelligent Diagnostics: One-Stop Solution for DTCs

This smart diagnostic scanner MS909EV has gathered all essential instructions for obstacles that you may encounter throughout the diagnostic procedure, and artfully arranged them into 5 comprehensive sections.

• Technical Services Bulletins: Shows you the car manufactures' DTC-related recalls and OEM campaigns, providing up-to-date information on which auto parts are affected and require a recall.
• DTC analysis: Provides the comprehensive analysis of trouble codes, including the explanation of the reasons for these faults, their potential impact, and available solutions.
• Repair Assist: The comprehensive analysis of trouble codes, including the explanation of the reasons for these faults, their potential impact, and available solutions. All procedures are verified by professionals.
• Repair Tip: Present a variety of diagnostics covering the information you need to clear faults, and provide repair steps in both text and video format for your ease of use.
• Relevant Cases: You can access real-world repair processes relevant to specific vehicles and faults, based on millions of successful repairs.

MS909EV Advanced ECU Programming & ECU Coding

Advanced ECU Programming for Benz & BMW

Specially for Benz:

• Post-Programming Processing Functions
• Programming Restoration
• Synchronization Coding Function
• Transmission Calibration Data Backup & Restoration
• Implicit Coding: Current Value & Target Value
• SCN Coding Based on Big Data

Specially for BMW:

• Entertainment System HTTP Programming
• High Voltage System Programming
• Personalized Data Backup
• Programming History
• Automatic Calculation Programming

ECU Coding for Exploring More Possibility on your Vehicle

Change replaced model and code into vehicle ECU modules via modify custom parameter value.

• Online / Offline ECU Coding
• Component Matching
• Refresh Hidden Functions
• Disable Annoying Features
• Programmed Module Installation
• Enhance Vehicle Performance

Note: ECU Programming just for Specific BENz and BMW, and ECU Coding for Benz, BMW, Audi, Porsche, VW etc.

MS909EV 40+ Daily Reset Service for 150 Car Makes

Autel MaxiSys MS909EV for professional mechanics has been designed with 40+ commonly-used service functions, surpassing the number found in many other Autel MaxiSys scanners.

• Commonly Used Reset Functions for Fast Maintenance or Repairs:

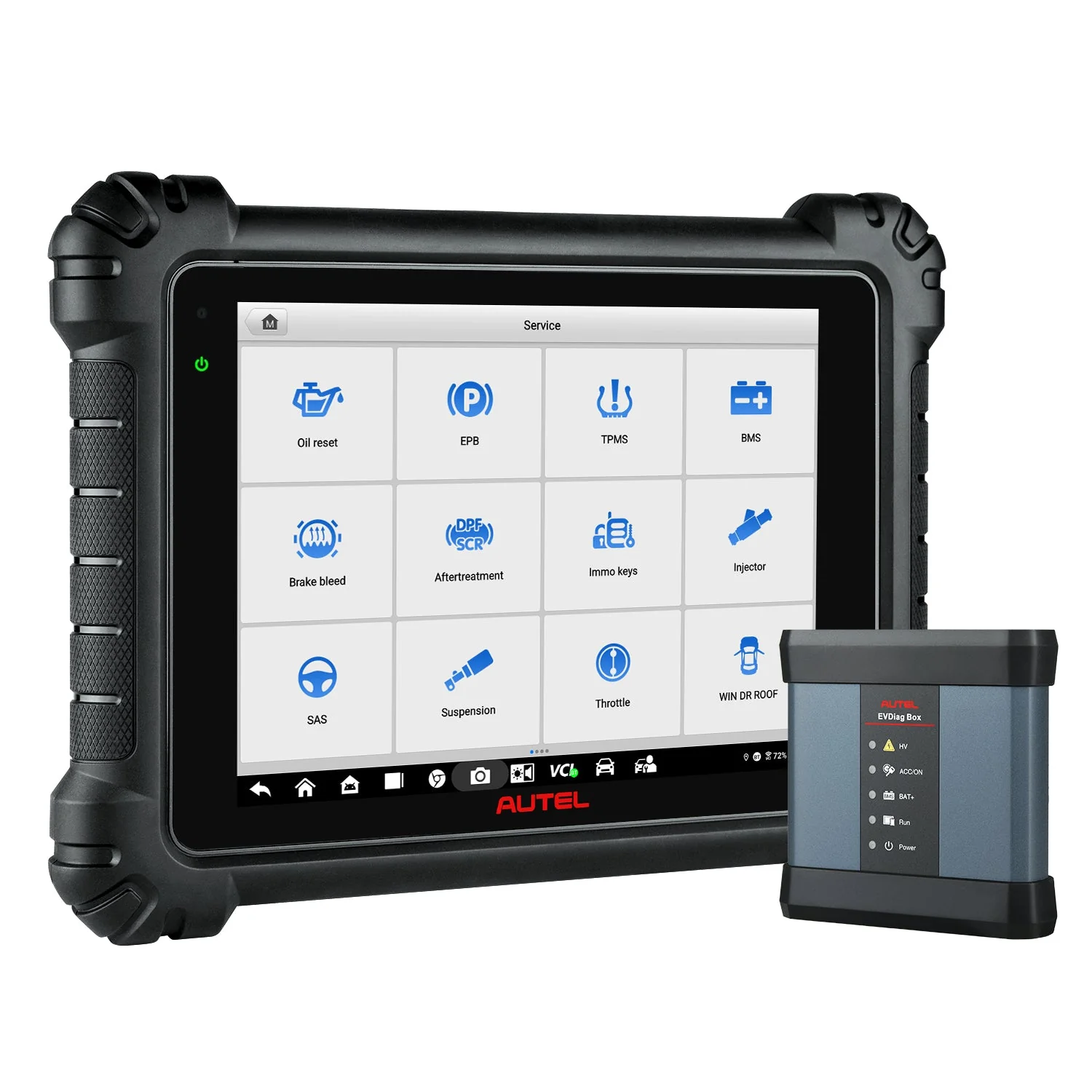

Oil Reset, EPB, BMS, ABS Bleed, TPMS, Airbag Reset, DPF Reg, IMMO Service, Injector Coding, SAS Calibration, Suspension Calibration, Throttle Adaption, ABS/SRS, Gear Learning, Sunroof Initialization, Seats Calibration, Headlight Matching, A/F Setting, WIN DR Roof, Odometer, CHG Tire Size, Cylinder, Turbocharging, Limit, Trans Adaption.

• Advanced Functions for Different Vehicle Models:

Neutral Gear Position Learning, Torque Sensor Adjustment, Signal Check, Yaw Rate Sensor (YRS) Learn, Clutch Pedal Position Learn, Cylinder Power Balance, Component Matching, Stop/Start Reset, Transport Mode, Auto-Door Lock, etc.

Note: Autel Maxisys MS909EV is not universal for all vehicles, please send us VIN for a compatible check.

MS909EV 10+ Extensive Functions

FCA AutoAuth After 2018 Cars

This Autel scanner MS909EV can be the licensed diagnostic tool to get diagnostic access to FCA SGW-equipped cars.

AutoVIN & Scan VIN/Plate

This Autel MaxiSys MS909EV car scanner has a smart AutoVIN option that can automatically read and store a vehicle's VIN number.

Bi-Directional Control

Also called active test. This Autel scan tool allows you to activate or test various mechanical components on demand.

All System Diagnostics

This MS909EV will help you interface with the entire vehicle network, to detect a problem, locate the faulty source precisely.

VAG Guided Functions

Help you easily navigate the steps required for matching, calibration, and basic settings on VAG Group and Bentley vehicles by simply following the provided guidance.

Unlock Hidden Functions

You can have a personalized driving experience customized to your own tastes, like open/close hundreds of car comfort functions, and code the way that your car's welcome lights brighten up.

Maxisys MS909EV Package List

Gain More Business - Click to Buy Extra Tesla Diagnostic Cables

• 1x MS909EV Main Unit
• 1x MaxiFlash VCI
• 1x EVDiag Box
• 1x USB to Ethernet Adapter
• 1x AC/DC Adapter(12V)
• 2x Spare Fuse(6x30mm)
• 1x Main Cable V2.0
• 1x EVDiag Box Main Cable BPTC0001/01
• 1x Clamp Cable
• 1x USB 2.0 Cable V2
• 1x Soft Cloth
• 1x Adapter BPTC0101/01
• 1x Adapter BPTC0102/01
• 1x Adapter BPTC0103/01
• 1x Adapter BPTC0201/01
• 1x Adapter BPTC0202/01
• 1x Adapter BPTC0203/01
• 1x Adapter BPTC0204/01
• 1x Adapter BPTC0205/01
• 1x Adapter BPTC1101/01
• 1x Adapter BPTC1102/01
• 1x DB25 Snake Cable BPTJ0001/01
• 6x Breakout Lead 1
• 6x Breakout Lead 2
• 6x Breakout Lead 3
• 6x Breakout Lead 4
• 3x Breakout Lead Extension Cord
• 4x Dual Banana Plug
• 1x Auxiliary Power Outlet Adapter
• 1x Quick Reference Guide
• 1x Packing List
• 1x Carrying Case(687x170x470mm)

Maxisys MS909EV Specifications

Operating System	Android 10.0
Processor	Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)
Memory	4GB RAM & 128GB On-board Memory
Display	9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen
Connectivity	Dual Wi-Fi (802.11 a/b/g/n/ac 2x2 MIMO) BT V5.0 + BR/EDR GPS USB 2.0 (2 USB TYPE-A ports and a Mini USB port) HDMI 2.0 SD Card (Support up to 256GB)
Camera	Rear: 16 Megapixel, Autofocus with Flashlight Front: 16 Megapixel
Sensors	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output	Microphone Dual Speakers 3-Band 3.5 mm stereo/standard headset jac
Power and Battery	15000mAH 3.8V lithium-polymer battery Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage	12V/3A Adapter
Operating Temperature	0 to 50°C (32 to 122°F)
Storage Temperature	-20 to 60°C (-4 to 140°F)
Dimensions(W x H x D)	304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")
Weight	1.66kg (3.66 lb.)
Protocols	DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

MS909EV Comparison Chart

Model	MS909EV	Ultra EV
Hardware
Connection	Bluetooth MaxiFlash VCI	Bluetooth MaxiFlash VCMI
Screen	9.7inch touchscreen	12.9inch touchscreen
Battery	15,000mAh	18,000mAh
Processor	2.2GHz+1.8GHz octa-core	2.2GHz+1.8GHz octa-core
Memory	128GB SSD/ 4GB RAM	256GB SSD/ 4GB RAM
Camera	16MP rear/16MP front	16MP rear/5MP front
Docking Station		Included
EVDiag Box	Included	Included
Software
Operating System	Android 10.0	Android 7.0
Automatic Detection	Auto-VIN/Auto-Scan Scan VIN/Plate Scan	Auto-VIN/Auto-Scan Scan VIN/Plate Scan
Secure Gateway Access	Authorized FCA Access With AutoAuth account	Authorized FCA Access With AutoAuth account
Diesel PM	Reset diesel emissions Light&medium duty vehicles	Reset diesel emissions Light&medium duty vehicles
High-voltage System Diagnostics	Diagrams of high-voltage system block	Diagrams of high-voltage system block
Battery Pack Diagnostics	SOC and SOH analysis	SOC and SOH analysis
Component Activations	Bi-directional control	Bi-directional control
Enhanced Functions	Coding&adaptations	Coding&adaptations
Repair Assist	Guided procedures with DTC analysis & fault code solutions	Guided procedures with DTC analysis & fault code solutions
Topology Module Mapping	Color coded all system status screen on supported vehicles	Color coded all system status screen on supported vehicles
Relevant Cases	DTC troubleshooting	DTC troubleshooting
Technical Service Bulletins	Available on select vehicles	Available on select vehicles
Oscilloscope		VCMI 5-in-one devic, VCI multimeter, waveform generator, CAN Bus tester

MS909EV Product guides and documents

MS909EV User Manual (PDF)
MS909EV Quick Guide (PDF)

Autel MS909EV Software Update

Autel MS909EV Software Update
