Autel MaxiSys MS909 Intelligent Diagnostic Tool
Autel MaxiSys MS909 is Autel 2024 most affordable intelligent diagnostic scan tool. Just like Autel Ultra, MS919, MS909 also been integrated with original factory TSB, repair assist, repair guide to boost technicians' service level & efficiency. Added with Topology Mapping, you can see all the ECU modules status of the vehicle and connections between them, prioritizing multiple faults to improve the efficiency of troubleshooting by 200%+.
Top Reasons to Choose Autel Maxisys MS909
- Advanced Intelligent Diagnostic: Specifically designed to guide the diagnostic process. Intelligent Diagnosis offers various maintenance solutions, including, TSB, DTC analysis, repair assistance, repair tips, related case support, etc.
- Topology Mapping 2.0: Displays a system distribution diagram of all the vehicle control modules and colored differently based on the diagnostic scan results.
- J2534 ECU Programming & Coding: ECU Programming & Coding on BMW and BENZ after replaced new ECU modules; Coding the adaptive data to on-board systems, improve vehicle performance.
- 36+ Service Functions: Autel OBD2 diagnostic scan tool MaxiSys MS909 can perform comprehensive vehicle-specific service and special functions like Oil Reset, EPB Reset, SAS Calibration, Battery Registration, Throttle Matching, Suspension Calibration, ABS Bleed, Injector Coding, Power Balance, Crankshaft Position Variation Learn and etc.
- OE Level All System Diagnostics: Run deep analysis on all the available systems and list DTC reasons by priority.
- Active Tests/ Bi-directional Control: Autel Scanner MS909 the latest automotive diagnostic scan tool comes with bi-directional control capability to control and activate various vehicle systems, sub-systems or components like ABS pump, valves, window, door, roof, lamps and etc to perform active tests to check whether they are functioning well as they should.
- 15000+ Vehicle Compatibility: Compatible with the most extensive coverage for 80+ American, Asian and European makes, 140+ brands and 15000+ models, support more newer vehicle models with CAN FD/ DoIP protocol for high-speed vehicle diagnostic communication.
- More High-End Features: VAG Guided Functions, Power Balance, Component Matching, Online Account Login Service and etc.
- Auto Scan 2.0: 3X faster scanning speed for all vehicles using CAN protocols.
- Remote Export: Offering a cloud-based solution for Technicians with module programming requirements a connection to pre-qualified Remote Experts in the field, technicians now have the ability to connect with Experts ready to complete their programming needs (Send 12 digits SN to add authorization).
- Upgradeable to Autel MS909EV with EV Diag Box: Expand your business to new energy vehicle diagnostics and EV battery pack analysis with extra purchase of Autel EVDiag Box kit. ---Click to Buy Autel MS909EV
Autel Maxisys MS909 Intelligent Diagnosis Improves Work Efficiency
The Autel MaxiSys MS909 bi-directional scan tool being the most advanced scan tool doesn't mean car enthusiasts can't enjoy Autel MaxiSys MS909's juicy feature collection. If you're fairly familiar with scan tools, you can use this one just as easily. Even if you aren't, the scanner is equipped with more than enough instructions to get you started.
With one-stop Intelligent Diagnostics, Autel Scanner MaxiSys MS909 provides technicians and home mechanics with step-by-step repair guidance. It offers multiple repair guidance options: Technical Service Bulletin, DTC Analysis, Repair Assist, Repair Tips, and Relevant Cases, making your work easier than ever.
OEM Technical Bulletin - Paying attention to manufacturer's fault TSBs can save unnecessary repairs.
- Manufacturers release public notices for models related to "common problems" for factory vehicles, including model information, fault symptoms, repair methods, program upgrade notices or recall strategies.
- In the case of TSB notices, relevant help information can be directly consulted, eliminating unnecessary diagnostic processes for technicians and improving repair efficiency.
Trouble Code Details - Familiarity with trouble code definitions, possible causes of occurrence, and diagnostic methods for quickly locating faults.
- Provide accurate explanations for trouble code definitions, analyze in detail the possible causes of faults, and provide diagnostic methods;
- According to the diagnostic method, narrow down the diagnostic range and quickly locate the fault point.
One-Stop Solution to Guide You to Solve the Issues Step-by-Step
- Vehicle System and Detected DTC(s) - displays the name of the vehicle system(s) and the detected DTC(s)
- Technical Service Bulletin - contains DTC-related recalls, TSB, and OEM campaigns.
- DTC Analysis - provides repair assistance information related to the fault code.
- Repair Assist - intelligently prioritizes DTCs and leads the user to the proper repair.
- Component Measurement - provides detailed information and instructional guides on using the oscilloscope to test components for faults.
- Relevant Cases - offers relevant fault-clearing cases for reference.
- Split Screen Display -View Multiple Functions AT Once
- Repair Tips - Intelligent guide
OE-Level Topology Module Map 2.0
This Autel Maxisys MS909 offers a visual representation of relationships elements within a communications network for you.
- Instantaneously get a glance of crucial information such as the number of systems, scanned systems, and corresponding scan results
- Directly access the current status of each module, including the presence and number of DTCs.
- Filter out healthy and faulty systems with distinct colors for easy analysis.
- Systematically present the communication structure between each module.
- Support over 50 leading car brands, including but not limited to BMW, Ford, Audi, Chrysler, Nissan, Honda, Toyota, Lexus, Land Rover, Jaguar, Benz, VW and More
Professional ECU Programming & ECU Coding
Major Features:
- Autel MS909 supports BMW F and E chassis hiding function reveal, Code for BMW F chassis, Ford, Mercedes Benz, Chrysler, Toyota, Hyundai, Land Rover, PSA, Renault, Porsche Ford offline programming, online anti-theft for VW, Audi, etc.
ECU Programming:
- Autel MS909 can pass through the blocks to access the ECU package and adjust the ECU module as you like: Program rewriting, ECU upgrade and downgrade, ECU module matching & replacement, Program blank ECUs, Reprogram second-hand ECUs.
- Features: Fixing Software-controlled, Improve Fuel Efficiency, Reduce Power Loss, Enhance Durability
ECU Coding: Change replaced model and code into vehicle ECU modules via mod-ify custom para-meter value.
- Refresh Hidden Functions
- Customize OE-setting
- Match Components Control Modules
- Enhance Vehicle Performance
Some samples of ECU Coding on vehicle Daily modification
- Deactivating the Start/Stop function; Beeping when unlocking and locking; Mirrors automatically folding and unfolding; Closing the windows after locking the car door with the key. Lighting coding; Flashing the brake lights during emergency braking; Activating/ deactivating daytime running lights; Changing the brightness of daytime running lights; Flashing of the headlights when locking or unlocking the doors via the remote control; Dashboard coding; Displaying of the real speed via GPS signal; Displaying the amount of fuel consumption at a given speed
Note: Autel MS909 scan tool has ECU programming is ONLY available for Benz/ BMW.
4. Autel Maxisys MS909 with 36+ Advanced functions
Maxisys MS909 diagnostic scanner comes with 36+ service functions, such as ABS Brake Bleeding( also for VAG cars), SRS Reset, SAS Calibration, Oil Reset, EPB, BMS, injector coding, DPF, Throttle Body, etc to meet your various needs. Check your👉 vehicle coverage
- Oil Reset Service: It allows you to perform a reset for a new calculation of the Engine Oil Life system once you changed the oil.
- EPB: The service is essential in maintaining the electronic braking system's safety and efficiency.
- BMS: The service allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.
- DPF: The service works for the Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in, and DPF teach-in after replacing the engine control unit.
- SAS: The service helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.
- TPMS: The service makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs, and testing sensors.
- ABS Bleeding: ABS brake bleeding to get a firm brake pad after air exhaustion.

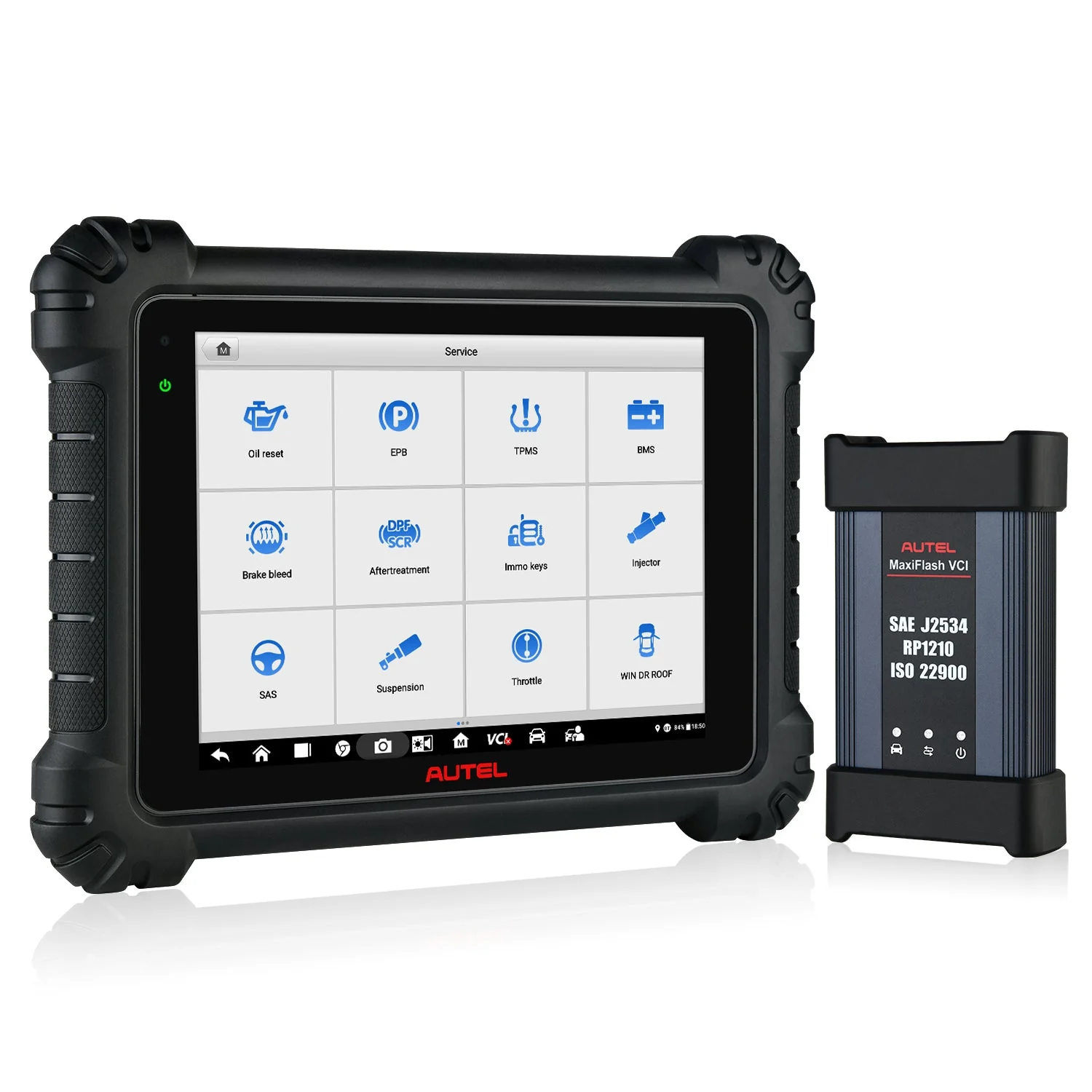

Intelligent Autel Scanner MS909 - Advanced MaxiFlash VCI
Autel OBD2 diagnostic tool MS909 car diagnostic computer is able to perform OE level all systems diagnostics on over 80 makes and models to retrieve vehicle ECU information, read and clear codes, view live data stream of multiple sensors.
- Supported to D-PDU/J2534/RP1210 OE-Diagnostic Protocols: work with OE factory softwares for ECU Programming and coding
- Supported to CAN FD/ DoIP Protocols: work perfectly on GM vehicles produced after 2020, and BMW F G Chassis models, Jaguar & Land Rover after 2017, Volvo after 2018.
Maxisys MS909 Extensive Functions
VAG Guided Function
Designed for VAG cars!! Autel MaxiSys MS909 with guided functions provides OE-level guidance and allows you just follow the screen instructions step by step to complete some complex operations. For example, if you want to replace brake pads, the MS909 scanner will tell you when to enter Service mode, and when to replace the brake pads, with detailed steps and tips.
New Energy Vehicle Support - Tesla & McLaren
Unlike traditional diagnostic scanners, Autel MaxiSys MS909 supports new energy vehicle - Tesla and McLaren for diagnostic.
Gain More Business - Click to Buy Extra Tesla Diagnostic Cables
Refresh Hidden Features
MS909 can help you activate the hidden features already programmed to car computers to get high-end functions. Such as installing the auto start-stop system, customizing the injector light, changing US-style daytime light, adjust the auto door look at a particular speed. Compatible with VW, Audi, Skoda, etc.

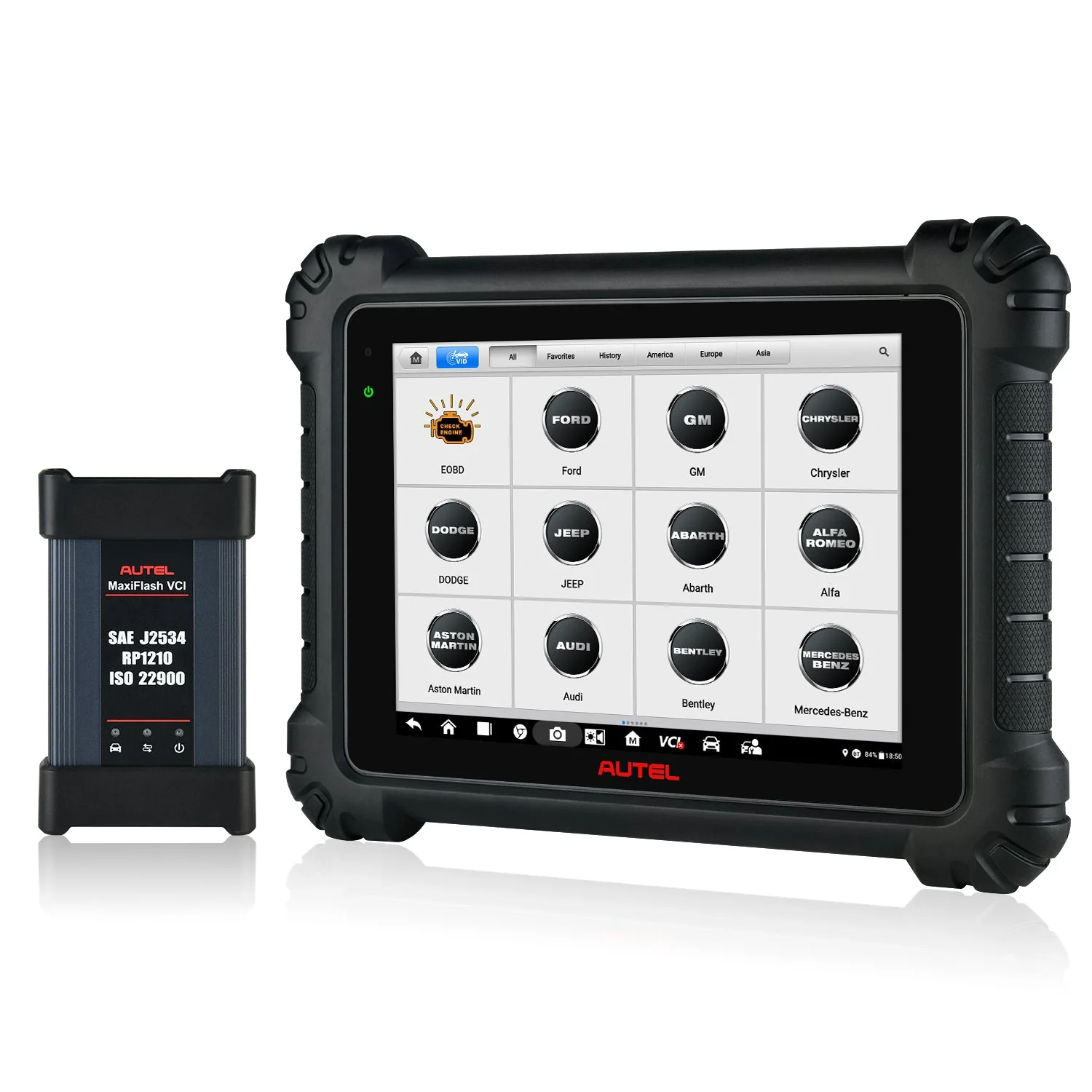

Extensive Vehicle Coverage
Autel MS909 covers over 80 American, European and Asian vehicle makes and models such as Toyota, Honda, Infiniti, Kia, Nissan, Subaru, Suzuki, Mazda, Lexus, Dodge, Bentley, Seat, Skoda, and more.
Remote Tech Support
You shall never work alone. Autel's professional tech support team is always by your side.
MaxiSYS MS909 Specifications
| Operating System | Android 7.0 |
| Processor |
Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53) |
| Memory | 4GB RAM & 128GB On-board Memory |
| Display | 9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen |
| Connectivity |
|
| Camera |
|
| Sensors |
Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output |
|
| Power and Battery |
|
| Input Voltage | 12V/3A Adapter |
| Operating Temperature | 0 to 50°C (32 to 122°F) |
| Storage Temperature | -20 to 60°C (-4 to 140°F) |
| Dimensions(W x H x D) | 304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67") |
| Weight | 1.66kg (3.66 lb.) |
| Protocols | DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2) |

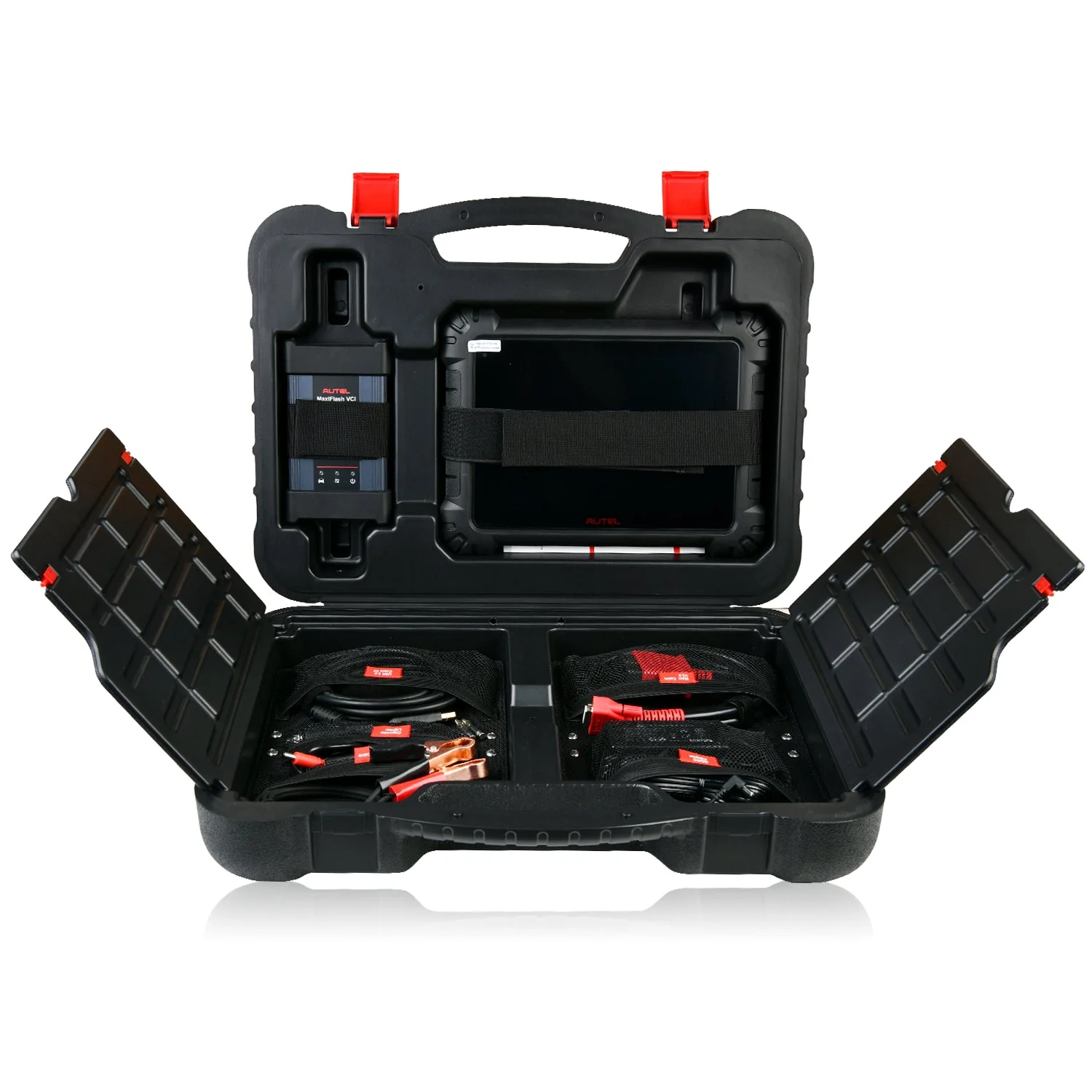

MaxiSYS MS909 Package List:
- 1x MS909 Main Unit
- 1x MaxiFlash VCI
- 1x Main Cable V2.0
- 1x USB 2.0 Cable V2
- 1x AC/DC Adapter(12V)
- 1x Cigarette Lighter
- 2x Light Fuse 6x30mm
- 1x Clipper Cable
- 1x Quick Reference Guide
- 1x Packing List
- 1x Soft Cloth
- 1x Carrying Case (504x133x360)mm
MS909 Product guides and documents
MS909 User Manual (PDF)Autel MS909 Software Update
Autel MS909 Software UpdateCertificate
