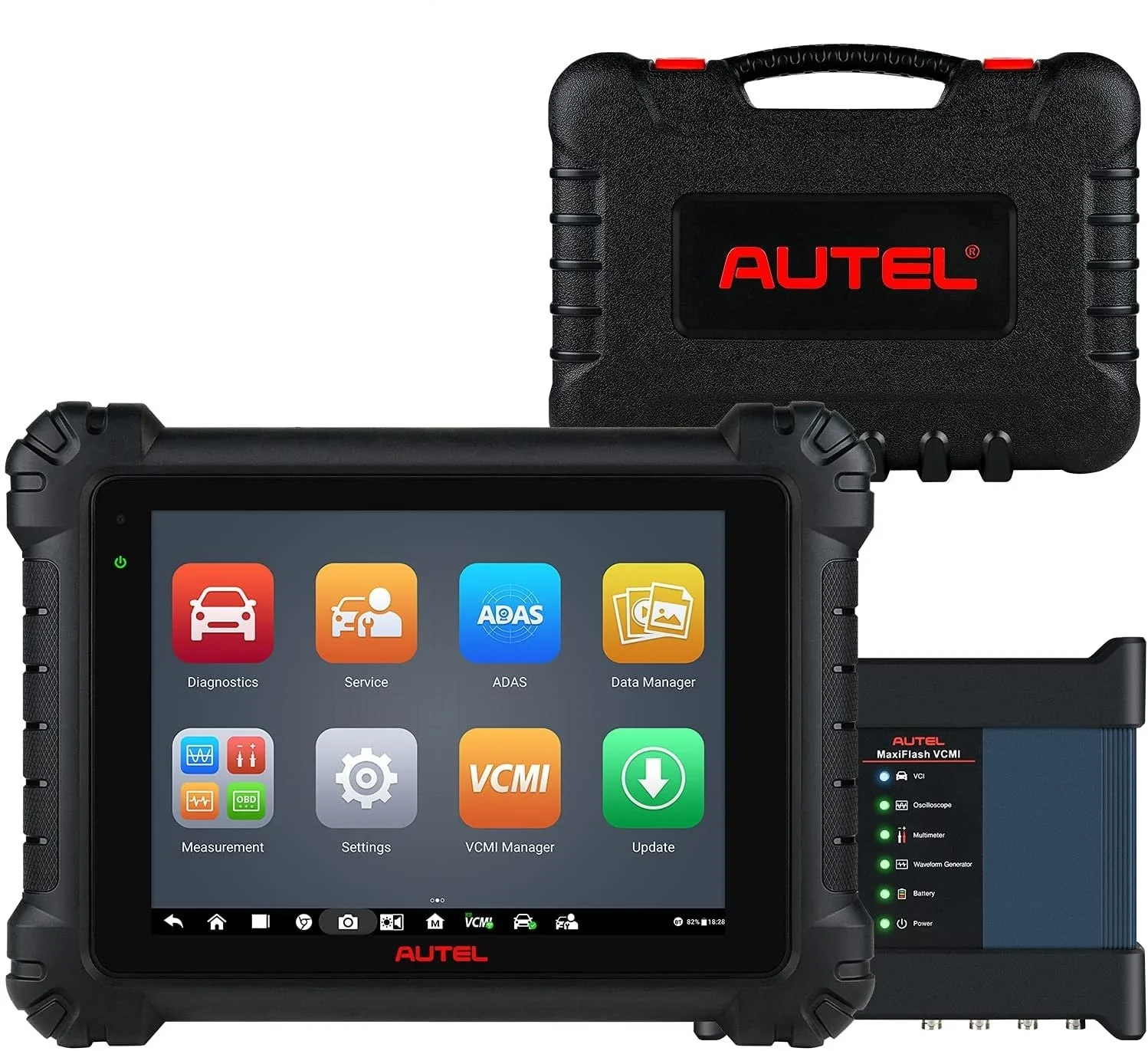

Autel MaxiSys MS919 Diagnostic Scanner 2026

Autel MaxiSys MS919 has entirely same functions as Autel Ultra while cut budget in half: Topology 2.0, ECU Programming & Coding, 38+ Service, VAG Guided, WIFI Print, CAN-FD&DOIP, Logical Scanning Report, etc. Along with Top configuration: Android 7.0, Octa-core CPU, 4G+128G, 9.7'' 2048*1536, 5&2.4G WIFI, with Chic 5-in-1 VCMI improves 5X FASTER data transmission efficiency.

Top Reasons to Choose Autel Maxisys MS919

• Motor TruSpeed Repair: 2026 Newly Released feature, With Comprehensive OEM-Sourced Repair and Service Data.(Note: Only for US IP, 650 bucks/year)
• Topology Mapping 2.0: Displays all systems distribution diagram of the vehicle control modules, mark out the number of DTCs and color differently based on the diagnostic results.
• Advanced 5-in-1 VCMI, Valued 2000 Bucks Functions: combining VCI, Oscilloscope, Multimeter, Waveform Generator, CAN BUS Check 5 key functions.
• ECU Programming & Coding: Reprogram new ECU modules on BMW and BENZ after replaced new ECU modules; Perform ECU Coding to match the preprogrammed ECU to on-board systems, improve vehicle performance.
• 40+ Service Functions: Oil Reset, EPB, BMS, SAS, Throttle Relearn, ABS Bleed, Key Programming, Injector Coding, Suspension, Transmission Relearn, Cylinder Power Balance, Crankshaft Sensors Relearn etc.
• OE Level All System Diagnostics: Run deep analysis on all the available systems and list DTC reasons by priority.
• Active Tests/ Bi-directional Control: Autel Scanner MS919 the latest automotive diagnostic scan tool comes with bi-directional control capability to control and activate various vehicle systems, sub-systems or components like ABS pump, valves, window, door, roof, lamps and etc to perform active tests to check whether they are functioning well as they should.
• 15000+ Vehicle Compatibility: Compatible with the most extensive coverage for 80+ American, Asian and European makes, 140+ brands and 15000+ models, support more newer vehicle models with CAN FD/ DoIP protocol for high-speed vehicle diagnostic communication.
• More High-End Features: VAG Guided Functions, Power Balance, Component Matching, Online Account Login Service and 1 year free update service.
• Auto Scan 2.0: 3X faster scanning speed for all vehicles using CAN protocols.
• Remote Export: Offering a cloud-based solution for Technicians with module programming requirements a connection to pre-qualified Remote Experts in the field, technicians now have the ability to connect with Experts ready to complete their programming needs (Send 12 digits SN to add authorization).
• Upgradeable to Autel MS919EV with EV Diag Box: Expand your business to new energy vehicle diagnostics and EV battery pack analysis with extra purchase of Autel EVDiag Box kit.
• Comes with One Year Free Update and One year free Warranty, US Shipping Only.

Motor TruSpeed Repair (Optional)

What's Motor TruSpeed Repair

• Online Data Base
• Advanced Searching Ability
• Comprehensive OEM-Sourced Repair and Service Data
• Most Up-to-date Information

How Motor TruSpeed Repair Works

• Identify all system faults, and tap the relevant diagnostic trouble code on your tablet for analysis
• Review all vehicle-specific MOTOR TruSpeed Repair data and relevant information. Then tap the applicable entry.
• Begin your diagnostic, repair, and service research and analysis, and discover the solution.

Note: Motor TruSpeed Repair requires extra purchase with 650 bucks/year.

OE-Level Topology Module Map 2.0

This Autel Maxisys MS919 offers a visual representation of relationships elements within a communications network for you.

• Instantaneously get a glance of crucial information such as the number of systems, scanned systems, and corresponding scan results
• Directly access the current status of each module, including the presence and number of DTCs.
• Filter out healthy and faulty systems with distinct colors for easy analysis.
• Systematically present the communication structure between each module.
• Support over 50 leading car brands, including but not limited to BMW, Ford, Audi, Chrysler, Nissan, Honda, Toyota, Lexus, Land Rover, Jaguar, Benz, VW and More

NOTE: Please be noted that Topology is not universal to all the above vehicle brand models, please send your VIN to us before you place order.

VCMI Device Economically Integrates Functions of 5 Devices into 1

Autel MaxiFlash VCMI is more powerful than ever with 5 tools (Oscilloscope, Waveform Generator, Multimeter, Can BUS tester and VCI) integrated! It can provide simultaneous and in-depth analysis on test components.

• Oscilloscope: 20MHz bandwidth, up to 80MS/s sampling rate, Easier operation with built-in preset guided test
• Waveform Generator: Producing electrical signals and analyze the performance of the vehicle hardware by varying the frequencies of different waveforms.
• Multimeter: With Multimeter function built-in, you can measure voltage, current, and resistance without any other tool.
• OBD2 CAN BUS Check: Easy and fast Multi-function detection
• VCI: Fastest and stable wireless data communication up to 164 feet/50m, diagnostic speed increases by 30%

Autel wireless auto diagnosis scanner MaxiSys MS919 with the 5-in-1 VCMI supports new CAN BUS Protocols And OE Diagnostic Protocol Standards:

• Support D-PDU/J2534/RP1210:work with OE factory softwares for ECU Programming and coding
• Support CAN FD/ DoIP Protocols: working perfectly on GM vehicles produced after 2020, and BMW F G Chassis models, Jaguar & Land Rover after 2017, Volvo after 2018.

NOTE: The CAN FD/ DoIP protocols are not universal to all the vehicles. Please check compatibility before purchase.

Professional ECU Programming & ECU Coding

Major Features:

• Autel MS919 supports BMW F and E chassis hiding function reveal, Code for BMW F chassis, Ford, Mercedes Benz, Chrysler, Toyota, Hyundai, Land Rover, PSA, Renault, Porsche Ford offline programming, online anti-theft for VW, Audi, etc.

ECU Programming:

• Autel MS919 can pass through the blocks to access the ECU package and adjust the ECU module as you like: Program rewriting, ECU upgrade and downgrade, ECU module matching & replacement, Program blank ECUs, Reprogram second-hand ECUs.
• Features: Fixing Software-controlled, Improve Fuel Efficiency, Reduce Power Loss, Enhance Durability

ECU Coding: Change replaced model and code into vehicle ECU modules via mod-ify custom para-meter value.

• Refresh Hidden Functions
• Customize OE-setting
• Match Components Control Modules
• Enhance Vehicle Performance

Autel Maxisys MS919 with 40+ Advanced functions

Maxisys MS919 diagnostic scanner comes with 36+ service functions, such as ABS Brake Bleeding( also for VAG cars), SRS Reset, SAS Calibration, Oil Reset, EPB, BMS, injector coding, DPF, Throttle Body, etc to meet your various needs. Check your👉 vehicle coverage

• Oil Reset Service: It allows you to perform a reset for a new calculation of the Engine Oil Life system once you changed the oil.
• EPB: The service is essential in maintaining the electronic braking system's safety and efficiency.
• BMS: The service allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.
• DPF: The service works for the Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in, and DPF teach-in after replacing the engine control unit.
• SAS: The service helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.
• TPMS: The service makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs, and testing sensors.
• ABS Bleeding: ABS brake bleeding to get a firm brake pad after air exhaustion.

Super Wide Compatibility Backs Every Car Workshop, Repair Workshop, Car Parts Store

Autel MS919 swaps all your compatibility concerns. The whole-system diagnostics applies to more than 80 car manufacturers and more than 140 vehicle brands. We have tested MaxiSys MS919 on 100,000 vehicles to ensure its 100% compatibility. The all-new VCMI sustains D-PDU, RP1210, CAN FD, J2534, DoIP, and so on procedures, making the MS919 compatible with the newest vehicle models in the market. Please be assured that the updating is ongoing and there is no need to worry the scanner would out of date. Check your👉vehicle coverage

• Latest OE level coverage for more than 15000+ US Domestic, Asian and European vehicles (Enhanced competences for German brand Vehicle), including super-car.
• Covering the latest models to 2026, 95% coverage of models after 2000 and 95% coverage of models after 2019.
• Expanded passenger and increasing commercial vehicle coverage.

Maxisys MS919 Extensive Functions

VAG Guided Function

Designed for VAG cars!! Autel MaxiSys MS919 with guided functions provides OE-level guidance and allows you just follow the screen instructions step by step to complete some complex operations. For example, if you want to replace brake pads, the MS919 scanner will tell you when to enter Service mode, and when to replace the brake pads, with detailed steps and tips.

New Energy Vehicle Support - Tesla & McLaren

Unlike traditional diagnostic scanners, Autel MaxiSys MS919 supports new energy vehicle - Tesla and McLaren for diagnostic.

Refresh Hidden Features

MS919 can help you activate the hidden features already programmed to car computers to get high-end functions. Such as installing the auto start-stop system, customizing the injector light, changing US-style daytime light, adjust the auto door look at a particular speed. Compatible with VW, Audi, Skoda, etc.

Extensive Vehicle Coverage

Autel MS919 covers over 80 American, European and Asian vehicle makes and models such as Toyota, Honda, Infiniti, Kia, Nissan, Subaru, Suzuki, Mazda, Lexus, Dodge, Bentley, Seat, Skoda, and more.

Remote Tech Support

You shall never work alone. Autel's professional tech support team is always by your side.

Maxisys MS919 Specifications

Operating System	Android 7.0
Processor	Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
Memory	4GB RAM & 128GB On-board Memory
Display	9.7 inch TFT-LCD with 1536 x 2048 resolution & capacitive touchscreen
Connectivity	Wi-Fix2 (802.11 a/b/g/n/ac 2x2 MIMO) BT v.2.1 + EDR GPS USB 2.0 (TWO USB HOST Type A, ONE USB mini device) HDMI 2.0 SD Card (Support up to 256GB)
Camera	Rear: 16 Megapixel, Autofocus with Flashlight Front: 5.0 Megapixel
Sensors	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output	Microphone Dual Speakers 3-Band 3.5 mm stereo/standard headset jack
Power and Battery	15000mAh 3.8V lithium-polymer battery Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage	12V/3A Adapter
Operating Temp.	0 to 50°C (32 to 122°F)
Storage Temp.	-20 to 60°C (-4 to 140°F)
Dimensions	304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")
Weight NW	1.66kg (3.66lb.)
Protocols	DoIP, PLC J2497, TP16 SAE-J1939, SAE J1708, SAE-J2411 Single Wire Can(GMLAN), SAE-J2819 (TP20), SAE-J2610 (Chysler SCI), SAE-J2809 (Honda Diag-H) SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), SAE J2819 (VAG KW81), SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2) ISO-15765, ISO-14229 UDS, ISO-11897-2, ISO-11897-3, ISO-9141, ISO-14230 UART Echo Byte, Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, KW82

MaxiSYS MS919 Packing List:

Maxisys MS919 Product guides and documents

MS919 User Manual (PDF)

Maxisys MS919 Software Update

Maxisys MS919 Software Update

Certificate

www.diagmart.com is Autel Authorized Online Agent. Products Created by Autel ® Innovation & Quality You Can Trust.
